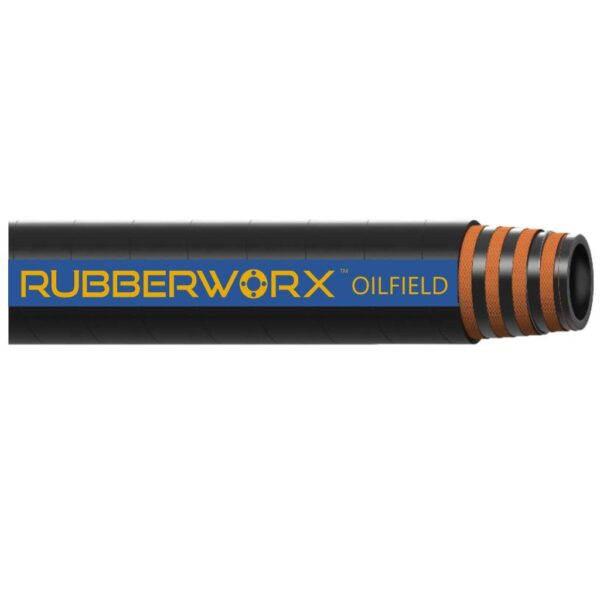

4″ FRAC RUBBER SUCTION 400 PSI
Description
Frac Suction & Discharge 400 PSI – This heavy-duty oilfield frac hose is designed for suction and discharge of frac solutions transferred on the low-pressure side in hydraulic fracturing pump applications. Heavy fabric reinforcement gives this hose a 400 PSI working pressure with a 1600 PSI burst. Designed with a
cover compounded to handle the rugged application; this hose has excellent abrasion and ozone resistance to achieve maximum service life. Rubberworx frac hose tube is specially formulated
to handle frac solutions with up to 28% HCL.
Additional information
| Tube | Nitrile Black |
|---|---|
| Reinforcement | Spiral Ply Textile |
| Cover | Black CR Smooth |
| Temperature Range (°F) | -40 to 180 |
| Hose ID (Decimal Inch) | 4.00 |
| Hose Nominal OD (Decimal Inch) | 5.00 |
| Working Pressure (psi) | 400 |
| Bend Radius (Decimal Inch) | 38 |
| Hose Weight (lb/ft) | 4.65 |
