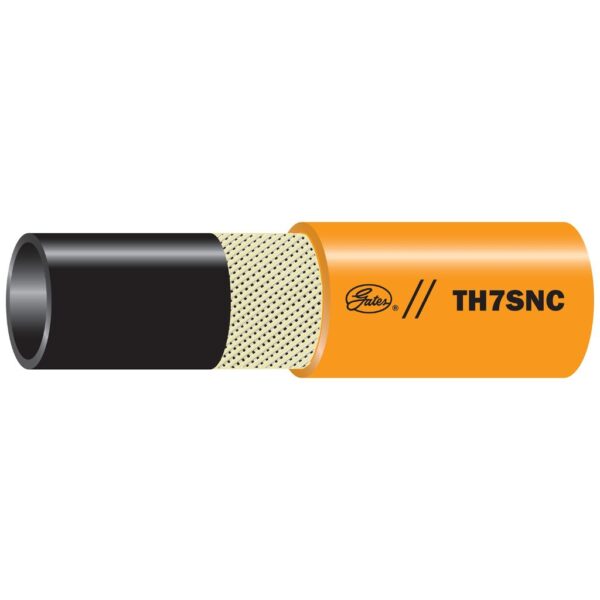

6TH7SNC X50FT
Product Code: 6th7snc-x50ft
TH7SNC Non-Conductive hose is recommended for petroleum and synthetic hydraulic fluids on applications that include power and mobile equipment, lifts and construction machinery. Orange color meets SAE 100R7 non-conductivity requirements and meets or exceeds performance requirements of SAE 100R7 with signifcantly tighter bend radius.
Description
- Recommended For: Petroleum and synthetic hydraulic fluids on applications that include power and mobile equipment, lifts and construction machinery.
- For use with MegaCrimp™ Couplings [G25 Series].
- Orange color TH7SNC meets SAE 100R7 non-conductivity requirements and meets or exceeds performance requirements of SAE 100R7 with a signifcantly tighter bend radius.
- Meets SAE 100R7 Electrical Conductivity Test; maximum leakage should not exceed 50 microamperes when subjected to 75 kV/Ft. for fve minutes.
- Meets ANSI A92.2 for vehicle mounted aerial devices.
Additional information
| Weight | 5.5 lbs |
|---|---|
| Dimensions | 17.875 × 5.125 × 15.875 in |
| Automative Part Number | 85668 |
| Product Number | 44670017 |
| Hose Pressure | Variable Pressure-Low |
| Tube Material | Nylon |
| Reinforcement | Synthetic textile |
| Cover Type | Standard |
| Cover Material | Urethane |
| Cover Characteristic | Non-Perforated |
| Cover Color | Orange |
| Tube Color | Black |
| Min Temp © | -54 |
| Max Temp © | 93 |
| Min Temp (F) | -65 |
| Max Temp (F) | 200 |
| Dash Size | 6 |
| Hose ID (in) | 0.385 |
| Hose ID (mm) | 9.8 |
| Hose OD (in) | 0.651 |
| Hose OD (mm) | 16.5 |
| Length (ft) | 50 |
| Length (m) | 15 |
| Dynamic WP (psi) | 2250 |
| Dynamic WP (bar) | 155.1 |
| Min. Burst Pressure (psi) | 9000 |
| Min. Burst Pressure (bar) | 620.5 |
| Min. Bend Radius (in) | 2 |
| Min. Bend Radius (mm) | 50.8 |
| Coupling Recommendation 1 | MegaCrimp® Couplings [G25 Series] |
| SAE Spec 1 | 100R7 |
| Other Spec | ANSI A92.2 for vehicle mounted aerial devices |
| Temp Note 1 | Petroleum, Synthetic Oils |
| GC Base Product | TH7SNC Thermoplastic Non-Conductive Hydraulic Hose – SAE 100R7 |
