        Product Code: 10ac134a-x25ft
        You must be logged in.

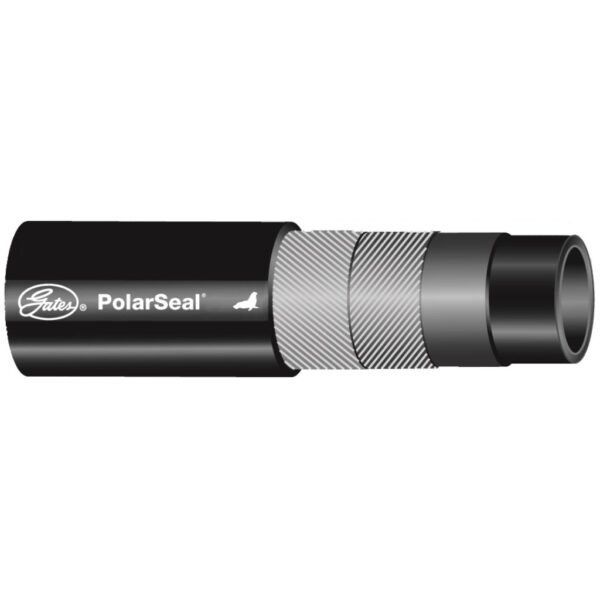

        PolarSeal® Hose is designed for environmentally-safe liquid and gaseous R134a and R12 refrigerant applications in automotive air conditioning and industrial systems, including tractors, construction trucks, and mobile and stationary refrigeration units. Designed to minimize permeation of R134a and R12 refrigerant.

        Description

        • Recommended For: Liquid and gaseous R134a and R12 refrigerants in automotive air conditioning and industrial systems; i.e., tractors construction trucks, mobile and stationary refrigeration units.
        • Black Chloroprene rubber tube inside a nylon barrier, reinforced with 2-layers of spiraled polyester and an EPDM cover.
        • Compatible for use with R12 and R134a refrigerants, as well as mineral oils and PAG oils.
        • Meets or exceeds SAE J3062 Type C, Class II and SAE J51, Type A2 outside diameters.

        Additional information

        Weight 8 lbs
        Dimensions 20.625 × 20.625 × 5.75 in
        Automative Part Number

        85666

        Product Number

        33530911

        Hose Pressure

        Variable Pressure-Low

        Tube Material

        Polychloroprene (Neoprene) – Type A

        Tube Characteristics

        Nylon Liner

        Reinforcement

        2-spiral, polyester, Nylon barrier

        Cover Type

        Standard

        Cover Material

        EPDM

        Cover Color

        Black

        Tube Color

        Black

        Min Temp ©

        -30

        Max Temp ©

        125

        Min Temp (F)

        -22

        Max Temp (F)

        257

        Dash Size

        10

        Hose ID (in)

        0.5

        Hose ID (mm)

        12.7

        Hose OD (in)

        1

        Hose OD (mm)

        25.4

        Length (ft)

        25

        Length (m)

        8

        Dynamic WP (psi)

        500

        Dynamic WP (bar)

        34.5

        Min. Burst Pressure (psi)

        2000

        Min. Burst Pressure (bar)

        137.9

        Min. Bend Radius (in)

        4

        Min. Bend Radius (mm)

        101.6

        Vacuum (in Hg)

        24

        Vacuum (mm Hg)

        610

        Coupling Recommendation 1

        PolarSeal® Couplings (ACA) [G45 Series]

        SAE Spec 1

        J51

        SAE Spec 2

        J3062

        GC Base Product

        AC134A Air Conditioning PolarSeal® I Hose
