10G1 XREEL
Product Code: 10g1-xreel
You must be logged in.

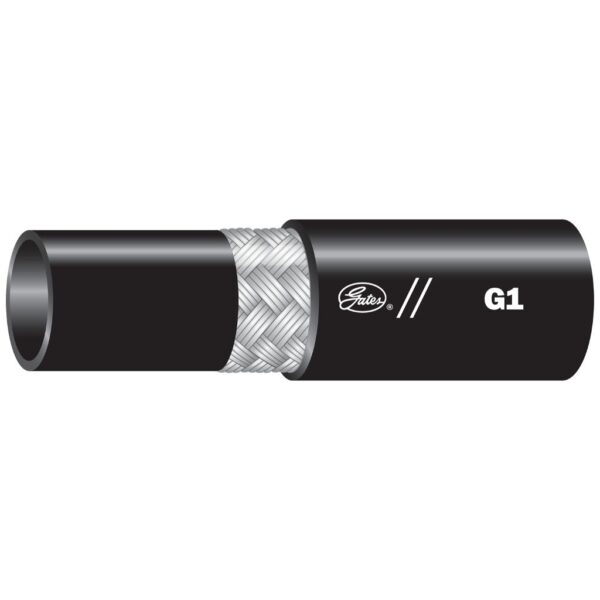

Global G1 hose is recommended for medium-pressure hydraulic lines and is compatible with biodegradable hydraulic fluids like polyolester, polyglycols and vegetable oils as well as petroleum-based fluids.
Options
3g1-xbale
3g1-xctn
3g1-xreel
4g1-x50ft
4g1-xbale
4g1-xreel
5g1-xctn
5g1-xreel
6g1-x50ft
6g1-x100ft
6g1-xbale
6g1-xreel
8g1-x50ft
8g1-x100ft
8g1-xbale
8g1-xlg-reel
8g1-xreel
10g1-xbale
10g1-xreel
12g1-x50ft
12g1-xbale
12g1-xreel
16g1-x50ft
16g1-xbale
16g1-xreel
20g1-xbale
20g1-xctn
24g1-xctn
32g1-xctn
Description
- Recommended For: Medium-pressure hydraulic lines.
- For use with Field Attachable Type T Couplings [G27 Series], GlobalSpiral™ Couplings [G20 Series], GlobalSpiral Plus Couplings [G22 Series], MegaCrimp™ Couplings [G25 Series], Power Crimp™ Couplings (-3 Only), Power Crimp Grease Couplings and Stainless Steel Braid Couplings [G17 Series].
- Tested to industry-standard 450,000 impulse cycles.
- Meets Flame Resistance Acceptance Designation MSHA 2G.
Additional information
| Weight | 72.6 lbs |
|---|---|
| Dimensions | 18 × 18 × 17.5 in |
| Automative Part Number | 70612 |
| Product Number | 46570115 |
| Hose Pressure | Variable Pressure-Low |
| Tube Material | Nitrile – Type C |
| Tube Characteristics | Hyd Fluids, Phosphate Esters, Water Glycol |
| Reinforcement | 1-braid, wire |
| Cover Type | Standard |
| Cover Material | Nitrile/PVC – Type C2 |
| Cover Color | Black |
| Tube Color | Black |
| Min Temp © | -40 |
| Max Temp © | 100 |
| Min Temp (F) | -40 |
| Max Temp (F) | 212 |
| Dash Size | 10 |
| Hose ID (in) | 0.625 |
| Hose ID (mm) | 15.9 |
| Hose OD (in) | 0.93 |
| Hose OD (mm) | 23.6 |
| Length (ft) | 220 |
| Length (m) | 67 |
| Dynamic WP (psi) | 1900 |
| Dynamic WP (bar) | 131 |
| Min. Burst Pressure (psi) | 7600 |
| Min. Burst Pressure (bar) | 524 |
| Min. Bend Radius (in) | 8 |
| Min. Bend Radius (mm) | 203.2 |
| Coupling Recommendation 1 | Field Attachable Type T Couplings [G27 Series] |
| Coupling Recommendation 2 | GlobalSpiral™ Couplings [G20 Series] |
| Coupling Recommendation 3 | MegaCrimp® Couplings [G25 Series] |
| Coupling Recommendation 4 | Stainless Steel Braid Couplings [G17 Series] |
| ISO Spec 1 | 1436 1SN R1 |
| EN Spec 1 | 853 1SN |
| SAE Spec 1 | 100R1 |
| Meets MSHA 2G | YES |
| GC Base Product | Global G1 1-Wire Braid Hose – SAE 100R1 Type AT |
