        Product Code: 10mxg5k-xtp-xreel
        You must be logged in.

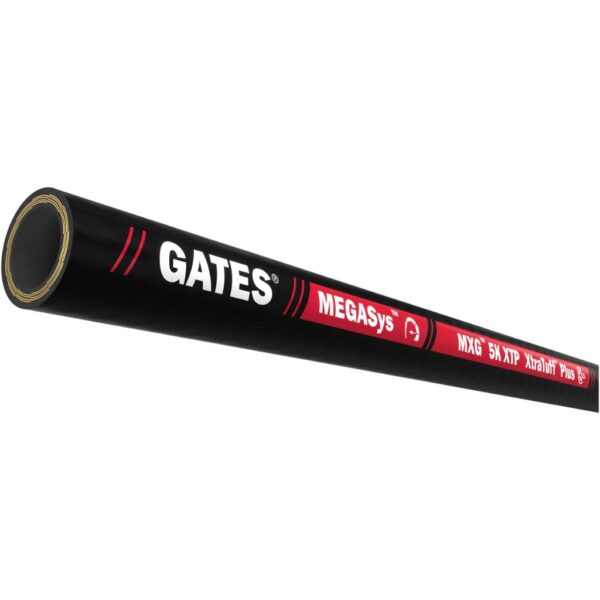

        Built with Gates patented Xpiral™ woven spiral technology, MegaSys™ MXG™ 5K hydraulic hose is lightweight, highly flexible and qualified to ONE MILLION impulse cycles. MXG™ 5K exceeds the performance of wire spiral constructions, but with the lower weight and flexibility driven by Gates materials science technology.

        Description

        • Recommended For: Extremely high-pressure, high-impulse abrasive applications. Compatible with biodegradable hydraulic fluids like polyolester, polyglycol and vegetable oil as well as standard petroleum based fluids.
        • Exceeds performance criteria of ISO 18752 350DC, SAE 100R13, EN856 R13 and ISO 3862 R13; sizes -10, -12 and -16 also rated for EN856 4SP.
        • MXG™ 5K is qualified to 1,000,000 impulse cycles (5000 psi working pressure, 133% test pressure, 250°F/121°C temperature) with GlobalSpiral™ and 600,000 impulse cycles with MegaCrimp™, exceeding industry standards for longevity in the factory or field.
        • Gates® XtraTuff™ Plus cover comes standard on MXG, providing abrasion and ozone resistance.
        • For use with GlobalSpiral™ Couplings [G20 Series] and MegaCrimp™ Couplings [G25 Series] (-6 and -8 Only).
        • MXG™ 5K has a Minimum Bend Radius that is 50-60% tighter than the industry standard for longevity in the factory or field.
        • Compact construction with excellent flexibility and lower force-to-bend for faster and more ergonomic installation (force-to-bend is 25% better, OD is 5% smaller and 20% lighter weight).
        • The durable XtraTuff™ Plus cover delivers additional toughness with 25X abrasion resistance and 800+ hour ozone resistance.
        • Meets Flame Resistant Acceptance Designation MSHA 2G.

        Additional information

        Weight 130.46 lbs
        Dimensions 18 × 18 × 17.5 in
        Automative Part Number

        70787

        Product Number

        46790003

        Hose Pressure

        Constant Pressure-Extremely High

        Tube Material

        Nitrile – Type C

        Tube Characteristics

        Synthetic Rubber

        Reinforcement

        Patented Xpiral™ woven spiral

        Cover Type

        XtraTuff Plus

        Cover Material

        Nitrile – Type C2

        Cover Color

        Black

        Tube Color

        Black

        Min Temp ©

        -40

        Max Temp ©

        121

        Min Temp (F)

        -40

        Max Temp (F)

        250

        Dash Size

        10

        Hose ID (in)

        0.625

        Hose ID (mm)

        15.9

        Hose OD (in)

        1.03

        Hose OD (mm)

        26.1

        Length (ft)

        220

        Length (m)

        67.1

        Dynamic WP (psi)

        5075

        Dynamic WP (bar)

        350

        Min. Burst Pressure (psi)

        20300

        Min. Burst Pressure (bar)

        1400

        Min. Bend Radius (in)

        3.9

        Min. Bend Radius (mm)

        100

        Coupling Recommendation 1

        GlobalSpiral™ Couplings [G20 Series]

        ISO Spec 1

        18752 Class 350 Grade D Type DC

        ISO Spec 2

        3862 Type R13

        EN Spec 1

        856 R13

        EN Spec 2

        856 4SP

        SAE Spec 1

        100R13

        Meets MSHA 2G

        YES

        GC Base Product

        MXG™ 5K-XTP with XtraTuff™ Plus Cover
