12CR1 XBALE
Product Code: 12cr1-xbale
You must be logged in.

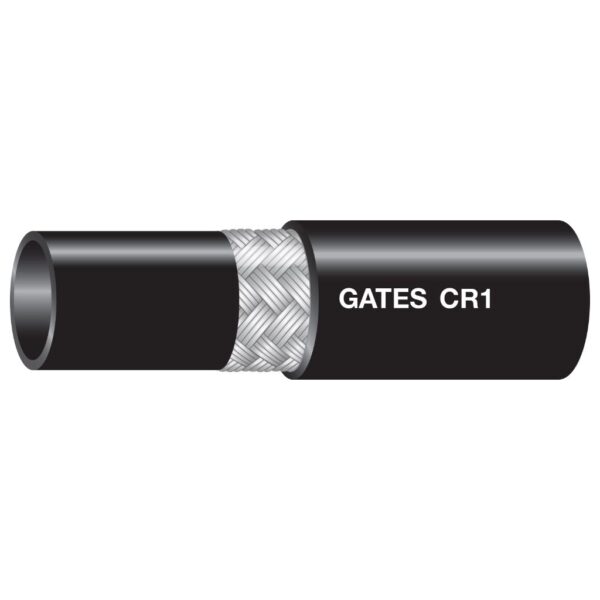

Gates® PRO™ Series CR1 variable pressure hydraulic hoses deliver performance and reliability in a one-wire construction. Engineered for less demanding hydraulic applications, our line of professional-grade hoses are designed to balance product performance and investment for everyday uses. All sizes deliver consistent performance to SAE and EN industry specifications. Qualified with Gates® PRO™ Series and MegaCrimp® Couplings.
Options
Description
- Recommended For: Medium-pressure hydraulics with low flexure/non-severe requiring the SAE 100R1 or EN853 1SN specification for dimensions and performance.
- Recommended Couplings: PCK Couplings (-4 to -16), MegaCrimp™ Couplings (-4 to -16), GB Couplings (-6 and -8).
- Tested to minimum SAE 100R1 150,000 impulse cycles.
- Cover: MSHA approved.
Additional information
| Weight | 518 lbs |
|---|---|
| Dimensions | 30 × 30 × 44 in |
| Product Number | 46578840 |
| Hose Pressure | Variable Pressure-Medium |
| Tube Material | Nitrile – Type C |
| Tube Characteristics | Hyd Fluids, Phosphate Esters, Water Glycol |
| Reinforcement | 1-braid, wire |
| Cover Type | Standard |
| Cover Material | Modified SBR |
| Cover Color | Black |
| Tube Color | Black |
| Min Temp © | -40 |
| Max Temp © | 100 |
| Min Temp (F) | -40 |
| Max Temp (F) | 212 |
| Dash Size | 12 |
| Hose ID (in) | 0.75 |
| Hose ID (mm) | 19.1 |
| Hose OD (in) | 1.07 |
| Hose OD (mm) | 27.2 |
| Length (ft) | 1400 |
| Length (m) | 427 |
| Dynamic WP (psi) | 1525 |
| Dynamic WP (bar) | 105.15 |
| Min. Burst Pressure (psi) | 6100 |
| Min. Burst Pressure (bar) | 420.6 |
| Min. Bend Radius (in) | 9.5 |
| Min. Bend Radius (mm) | 241.3 |
| Coupling Recommendation 1 | Pro Series Couplings |
| EN Spec 1 | 853 1SN |
| SAE Spec 1 | 100R1 |
| GC Base Product | CR1 1-Wire Braid Hose – SAE 100R1 – EN 853 1SN |
