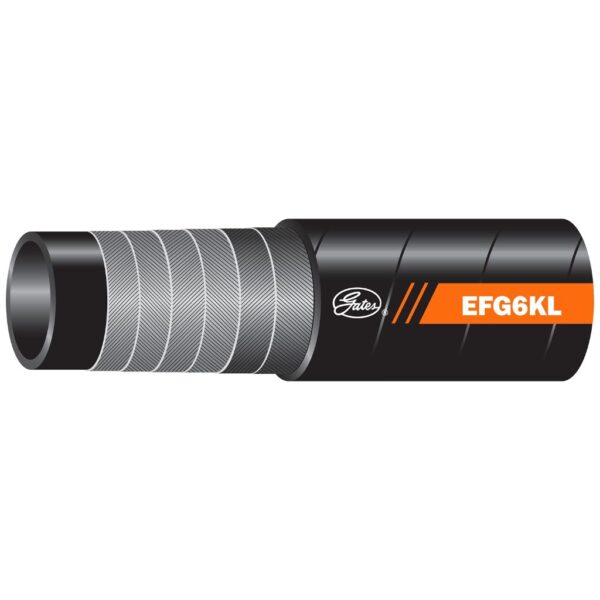

12EFG6KL XCTN
Product Code: 12efg6kl-xctn
EFG6K Low-Temp hose is recommended for extremely high pressure, low temperature hydraulic applications. Compatible with biodegradable hydraulic fluids like polyolester, polyglycol and vegetable oil as well as standard petroleum-based fluid.
Options
Description
- For use with GlobalSpiral™ Couplings [G20 Series].
- Superior flex impulse performance: Tested to 1,000,000 impulse cycles at 50% of SAE 100R15 bend radii.
- Resistant to cover cracking at low temperature and tight bends.
Additional information
| Weight | 97 lbs |
|---|---|
| Dimensions | 29.854 × 28.979 × 8.958 in |
| Automative Part Number | 70257 |
| Product Number | 46510038 |
| Hose Pressure | Constant Pressure-Extremely High |
| Tube Material | Nitrile – Type C |
| Tube Characteristics | Oil Resistant |
| Reinforcement | 4-spiral, wire |
| Cover Type | Standard |
| Cover Material | Polychloroprene (Neoprene) – Type A |
| Cover Color | Black |
| Tube Color | Black |
| Min Temp © | -57 |
| Max Temp © | 100 |
| Min Temp (F) | -70 |
| Max Temp (F) | 212 |
| Dash Size | 12 |
| Hose ID (in) | 0.75 |
| Hose ID (mm) | 19.1 |
| Hose OD (in) | 1.24 |
| Hose OD (mm) | 31.5 |
| Length (ft) | 100 |
| Length (m) | 30 |
| Dynamic WP (psi) | 6000 |
| Dynamic WP (bar) | 413.7 |
| Min. Burst Pressure (psi) | 24000 |
| Min. Burst Pressure (bar) | 1654.7 |
| Min. Bend Radius (in) | 4.8 |
| Min. Bend Radius (mm) | 121.9 |
| Coupling Recommendation 1 | GlobalSpiral™ Couplings [G20 Series] |
| GC Base Product | EFG6KL Low Temp Spiral Wire Hose |
