12G1H XBALE
Product Code: 12g1h-xbale
You must be logged in.

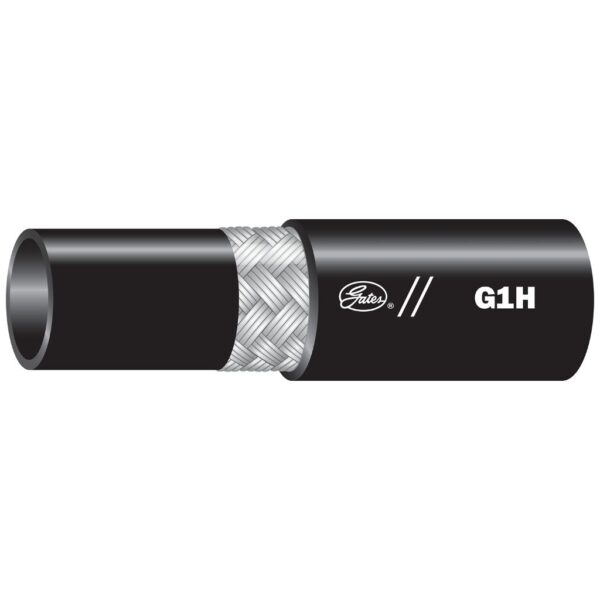

Global G1H hose is recommended for high-temperature, medium-pressure hydraulic oil line applications. Compatible with biodegradable hydraulic fluids like polyolester, polyglycols and vegetable oils as well as petroleum-based fluids and phosphate esters.
Options
Description
- Recommended For: High-temperature medium-pressure hydraulic oil lines.
- For use with GlobalSpiral™ Couplings [G20 Series], GlobalSpiral Plus Couplings [G22 Series], MegaCrimp™ Couplings [G25 Series] and Stainless Steel Braid Couplings [G17 Series].
- Provides tighter than standard minimum bend radius and greater flexibility for easier plumbing routing.
- Meets Flame Resistance Acceptance Designation MSHA 2G.
Additional information
| Weight | 660 lbs |
|---|---|
| Dimensions | 30 × 30 × 44 in |
| Product Number | 46572536 |
| Hose Pressure | Variable Pressure-Low |
| Tube Material | Nitrile – Type C |
| Tube Characteristics | Hyd Fluids, Phosphate Esters, Water Glycol |
| Reinforcement | 1-braid, wire |
| Cover Type | Standard |
| Cover Material | CSM – Type M |
| Cover Color | Black |
| Tube Color | Black |
| Min Temp © | -40 |
| Max Temp © | 135 |
| Min Temp (F) | -40 |
| Max Temp (F) | 275 |
| Dash Size | 12 |
| Hose ID (in) | 0.75 |
| Hose ID (mm) | 19.1 |
| Hose OD (in) | 1.09 |
| Hose OD (mm) | 27.7 |
| Length (ft) | 1500 |
| Length (m) | 457 |
| Dynamic WP (psi) | 1250 |
| Dynamic WP (bar) | 86.2 |
| Min. Burst Pressure (psi) | 5000 |
| Min. Burst Pressure (bar) | 344.7 |
| Min. Bend Radius (in) | 9.5 |
| Min. Bend Radius (mm) | 241.3 |
| Coupling Recommendation 1 | GlobalSpiral™ Couplings [G20 Series] |
| Coupling Recommendation 2 | MegaCrimp® Couplings [G25 Series] |
| Coupling Recommendation 3 | Stainless Steel Braid Couplings [G17 Series] |
| SAE Spec 1 | 100R1 Type AT 2003 Revision |
| Meets MSHA 2G | YES |
| GC Base Product | Global G1H 1-Wire Braid Hose High-Temp – SAE 100R1 Type AT |
