        Product Code: 12g8k-xctn
        You must be logged in.

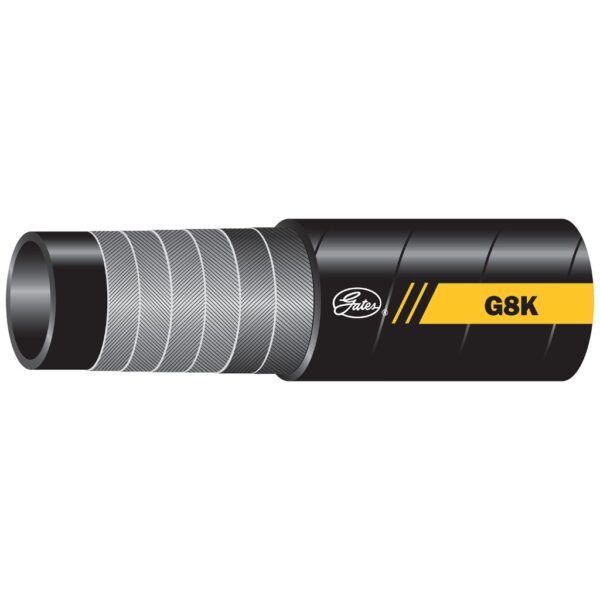

        The G8K Spiral Wire Hose is recommended for ultra high-pressure, high-impulse applications such as hydrostatic transmissions. It is also for use in the construction, agriculture, forestry, underground or open pit mining, and other industries on applications where extremely high pressure capability is required. G8K hoses offer industry-leading bend radius capability, which leads to ease of routing and installation, longer hose life in flexing applications, and fewer bent tube fitting requirements.

        Description

        • For use with G8K Couplings [G19 Series].
        • Tested to industry-leading 1,000,000 impulse cycles.
        • Meets Flame Resistance Acceptance Designation MSHA 2G.

        Additional information

        Weight 157 lbs
        Dimensions 28.5 × 28.5 × 7.5 in
        Automative Part Number

        71096

        Product Number

        46511639

        Hose Pressure

        Constant Pressure-Ultra High

        Tube Material

        Polychloroprene (Neoprene) – Type A

        Tube Characteristics

        Oil Resistant

        Reinforcement

        6-spiral, wire

        Cover Type

        Standard

        Cover Material

        Polychloroprene (Neoprene) – Type A

        Cover Color

        Black

        Tube Color

        Black

        Min Temp ©

        -40

        Max Temp ©

        121

        Min Temp (F)

        -40

        Max Temp (F)

        250

        Dash Size

        12

        Hose ID (in)

        0.75

        Hose ID (mm)

        19.1

        Hose OD (in)

        1.36

        Hose OD (mm)

        34.5

        Length (ft)

        100

        Length (m)

        30

        Dynamic WP (psi)

        8000

        Dynamic WP (bar)

        551.6

        Min. Burst Pressure (psi)

        32000

        Min. Burst Pressure (bar)

        2206.3

        Min. Bend Radius (in)

        9.5

        Min. Bend Radius (mm)

        241.3

        Coupling Recommendation 1

        G8K Couplings [G19 Series]

        Meets MSHA 2G

        YES

        GC Base Product

        G8K Spiral Wire Hose
