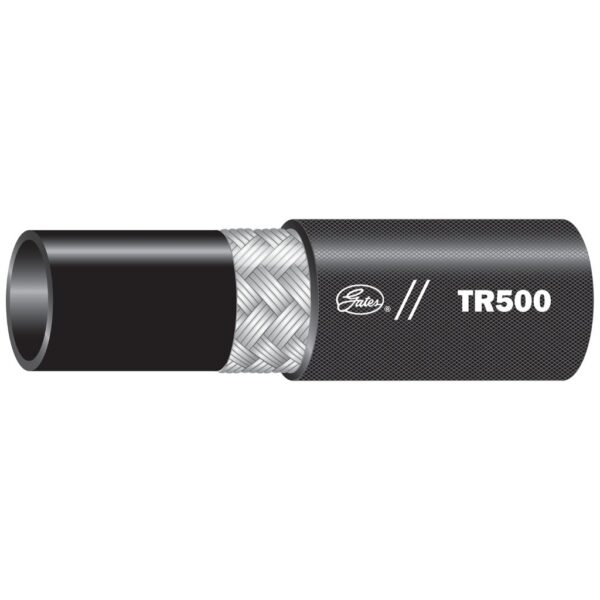

12TR500 XREEL
Product Code: 12tr500-xreel
You must be logged in.
Recommended for air brake hose, high temperature pressurized oil return lines and rotary oil/air compressor lines, engine and transmission coolant lines and lube oil lines. Not recommended for gasoline or diesel fuel applications.
Options
Description
- Recommended For: Air brake hose, high temperature pressurized oil return lines and rotary oil/air compressor lines, engine and transmission coolant lines and lube oil lines. Not recommended for gasoline or diesel fuel applications.
- For use with GL Couplings [G43 Series] and GlobalSpiral™ Plus Couplings [G22 Series].
- Meets or exceeds DOT FMVSS 106-74, SAE J1402 for air brake hose (-4, -6, -8, -10).
Additional information
| Weight | 68 lbs |
|---|---|
| Dimensions | 20 × 20 × 17.5 in |
| Automative Part Number | 70886 |
| Product Number | 46572230 |
| Hose Pressure | Constant Pressure-Low |
| Tube Material | Nitrile – Type C |
| Reinforcement | 1-braid, wire |
| Cover Type | Standard |
| Cover Material | Textile Braid Impregnated w/ Synthetic Rubber |
| Cover Color | Black |
| Tube Color | Black |
| Min Temp © | -40 |
| Max Temp © | 121 |
| Min Temp (F) | -40 |
| Max Temp (F) | 250 |
| Dash Size | 12 |
| Hose ID (in) | 0.75 |
| Hose ID (mm) | 19.1 |
| Hose OD (in) | 1.04 |
| Hose OD (mm) | 26.4 |
| Length (ft) | 200 |
| Length (m) | 61 |
| Dynamic WP (psi) | 500 |
| Dynamic WP (bar) | 34.5 |
| Min. Burst Pressure (psi) | 2000 |
| Min. Burst Pressure (bar) | 137.9 |
| Min. Bend Radius (in) | 3.5 |
| Min. Bend Radius (mm) | 88.9 |
| Vacuum (in Hg) | 30 |
| Vacuum (mm Hg) | 762 |
| Coupling Recommendation 1 | MegaCrimp® Couplings [G25 Series] |
| DOT | DOT FMVSS 106-74 |
| GC Base Product | TR500 High Temperature Air Brake Hydraulic Hose – SAE J1402 |
