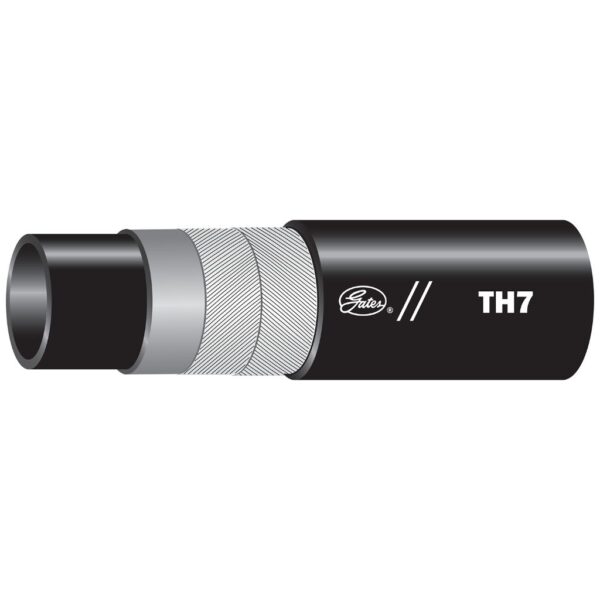

16TH7 X50FT
TH7 Thermoplastic hydraulic hose is recommended for petroleum, water-base and synthetic hydraulic fluids. Applications include power and telephone mobile equipment (cherry pickers), lubrication lines, blowout preventer control lines, farm and construction machinery and high-pressure hydraulic lift applications, especially material handling equipment with mast and pulley systems like forklifts, aerial lifting, hydraulic boom cranes and many others.
Description
- Recommended For: Petroleum, water-base and synthetic hydraulic fluids. Applications include: power and telephone mobile equipment (cherry pickers), lubrication lines, blowout preventer control lines, hydraulic lifts and farm and construction machinery. TH7 hose meets or exceeds performance requirements of SAE 100R7 with a significantly tighter bend radius.
- For use with MegaCrimp™ Couplings [G25 Series] and Swage PCTS Couplings [G51 Series].
- 100% seamless nylon tube that easily handles a broad range of hydraulic fluids, including phosphate esters and water glycol.
Additional information
| Weight | 13.7 lbs |
|---|---|
| Dimensions | 29.854 × 28.979 × 8.958 in |
| Automative Part Number | 85407 |
| Product Number | 44671197 |
| Hose Pressure | Variable Pressure-Low |
| Tube Material | Seamless Nylon – Type Z |
| Tube Characteristics | Hyd Fluids, Phosphate Esters, Water Glycol |
| Reinforcement | 1-braid, polyester |
| Cover Type | Standard |
| Cover Material | Urethane |
| Cover Characteristic | Perforated |
| Cover Color | Black |
| Tube Color | Black |
| Min Temp © | -54 |
| Max Temp © | 93 |
| Min Temp (F) | -65 |
| Max Temp (F) | 200 |
| Dash Size | 16 |
| Hose ID (in) | 1 |
| Hose ID (mm) | 25.4 |
| Hose OD (in) | 1.32 |
| Hose OD (mm) | 33.5 |
| Length (ft) | 50 |
| Length (m) | 15 |
| Dynamic WP (psi) | 1000 |
| Dynamic WP (bar) | 68.9 |
| Min. Burst Pressure (psi) | 4000 |
| Min. Burst Pressure (bar) | 275.8 |
| Min. Bend Radius (in) | 8 |
| Min. Bend Radius (mm) | 203.2 |
| Coupling Recommendation 1 | MegaCrimp® Couplings [G25 Series] |
| SAE Spec 1 | 100R7 |
| Temp Note 1 | Petroleum, Synthetic Oils |
| Temp Note 2 | Water/Oil, Water-based Fluids to +158°F |
| GC Base Product | TH7 Thermoplastic Hydraulic Hose – SAE 100R7 |
