24EFG5K XCTN
Product Code: 24efg5k-xctn
You must be logged in.

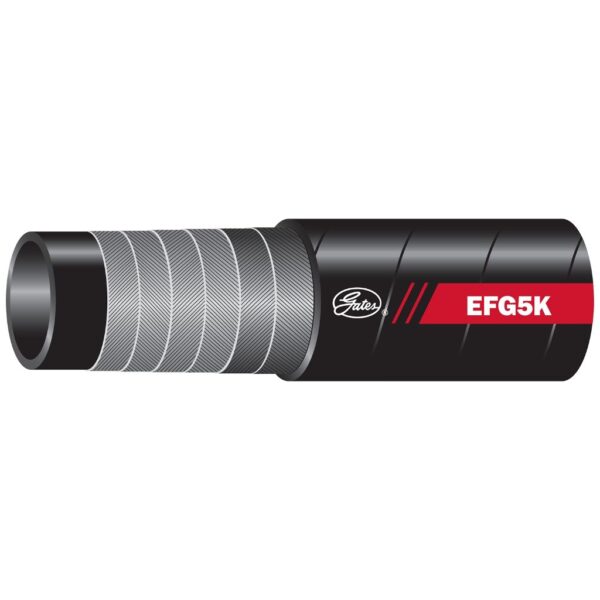

EFG5K hose is recommended for extremely high pressure and high impulse hydraulic applications. EFG5K is designed to meet or exceed all requirements of ISO 3862 R13 specifications and performance requirements of EN 856 4SP (-10 to -32) and EN 856 4SH (-20 to -32). Compatible with biodegradable hydraulic fluids like polyolester, polyglycol and vegetable oil, as well as standard petroleum-based fluids.
Options
6efg5k-x25ft
6efg5k-x100reel
6efg5k-xctn
6efg5k-xreel
8efg5k-x25ft
8efg5k-x100reel
8efg5k-xctn
8efg5k-xll
8efg5k-xreel
10efg5k-x25ft
10efg5k-xctn
10efg5k-xll
10efg5k-xreel
12efg5k-x25ft
12efg5k-xctn
12efg5k-xll
12efg5k-xreel
16efg5k-x25ft
16efg5k-xctn
16efg5k-xll
20efg5k-x25ft
20efg5k-xctn
20efg5k-xll
24efg5k-x25ft
24efg5k-xctn
24efg5k-xll
32efg5k-x25ft
32efg5k-xctn
32efg5k-xll
40efg5k-xcrate
Description
- The optional MegaTuff™ cover lasts up to 300 times longer than standard hose during hose-to-hose and hose-to-metal abrasion tests per ISO 6945 and offers superior ozone and weathering resistance.
- The optional XtraTuff™ cover lasts up to 25 times longer than standard hose.
- Available in 121′ through 200′ continuous lengths.
- For use with GlobalSpiral™ Couplings [G20 Series], GlobalSpiral Max [G23 and G24 Series] and Stainless Steel Spiral Couplings [G18 Series].
- Superior flex impulse performance: Tested to 1,000,000 impulse cycles at 50% of EN 856 R13 and SAE 100R13 bend radii (except -32).
- Meets Flame Resistance Acceptance Designation MSHA 2G.
Additional information
| Weight | 149.5 lbs |
|---|---|
| Dimensions | 40 × 40 × 5 in |
| Automative Part Number | 71056 |
| Product Number | 46511455 |
| Hose Pressure | Constant Pressure-Extremely High |
| Tube Material | Nitrile – Type C |
| Tube Characteristics | Oil Resistant |
| Reinforcement | 6-spiral, wire |
| Cover Type | Standard |
| Cover Material | Polychloroprene (Neoprene) – Type A |
| Cover Color | Black |
| Tube Color | Black |
| Min Temp © | -40 |
| Max Temp © | 121 |
| Min Temp (F) | -40 |
| Max Temp (F) | 250 |
| Dash Size | 24 |
| Hose ID (in) | 1.5 |
| Hose ID (mm) | 38.1 |
| Hose OD (in) | 2.26 |
| Hose OD (mm) | 57.4 |
| Length (ft) | 50 |
| Length (m) | 15 |
| Dynamic WP (psi) | 5000 |
| Dynamic WP (bar) | 344.7 |
| Min. Burst Pressure (psi) | 20000 |
| Min. Burst Pressure (bar) | 1379 |
| Min. Bend Radius (in) | 10 |
| Min. Bend Radius (mm) | 254 |
| Coupling Recommendation 1 | GlobalSpiral™ Couplings [G20 Series] |
| Coupling Recommendation 2 | GlobalSpiral™ MAX Couplings [G24 Series] |
| EN Spec 1 | 856 R13 |
| SAE Spec 1 | 100R13 |
| Meets MSHA 2G | YES |
| GC Base Product | EFG5K Spiral Wire Hose – SAE 100R13 |
