        Product Code: 24ho-x75
        You must be logged in.

        Recommended for static pressure, hot oiler applications. Meets Flame Resistance Acceptance Designation MSHA 2G.

        Description

        • Recommended For: Static pressure, hot oiler applications.
        • Designed specifically to handle the transfer of hot oil at +135°C (+275°F) continuous, +149°C (+300°F) intermittent to clear the paraffin around the casing to help start the flow of oil to the surface.

        Additional information

        Weight 127 lbs
        Dimensions 40 × 40 × 7 in
        Automative Part Number

        80040

        Product Number

        46574674

        Hose Pressure

        Variable Pressure-High

        Tube Material

        Nitrile – Type C

        Tube Characteristics

        Oil Resistant

        Reinforcement

        2-braid, wire

        Cover Type

        Standard

        Cover Material

        CSM – Type A

        Cover Color

        Black

        Tube Color

        Black

        Min Temp ©

        -40

        Max Temp ©

        149

        Min Temp (F)

        -40

        Max Temp (F)

        300

        Dash Size

        24

        Hose ID (in)

        1.5

        Hose ID (mm)

        38.1

        Hose OD (in)

        2.15

        Hose OD (mm)

        54.6

        Length (ft)

        75

        Length (m)

        23

        Dynamic WP (psi)

        2300

        Dynamic WP (bar)

        158.6

        Min. Burst Pressure (psi)

        6900

        Min. Burst Pressure (bar)

        475.7

        Min. Bend Radius (in)

        20

        Min. Bend Radius (mm)

        508

        Coupling Recommendation 1

        GlobalSpiral™ Plus Couplings [G22 Series]

        Meets MSHA 2G

        YES

        GC Base Product

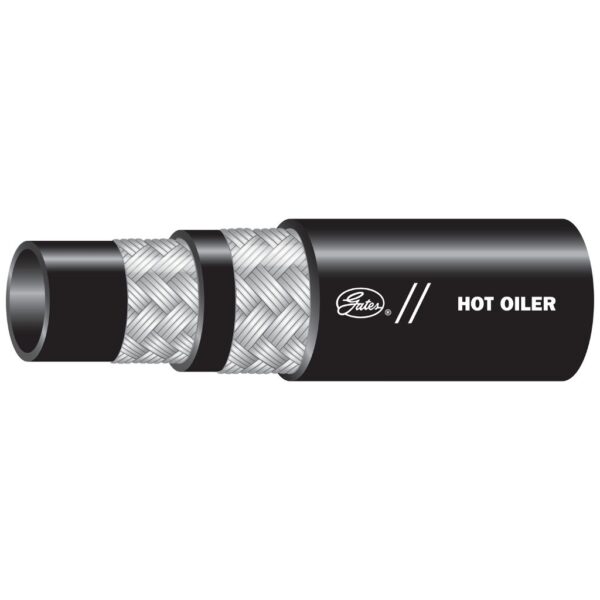

        Hot Oiler 2-Wire Braid Hydraulic
