3/4 X 50FT VAC BRAKE
Product Code: 3-4-x-50ft-vac-brake
You must be logged in.

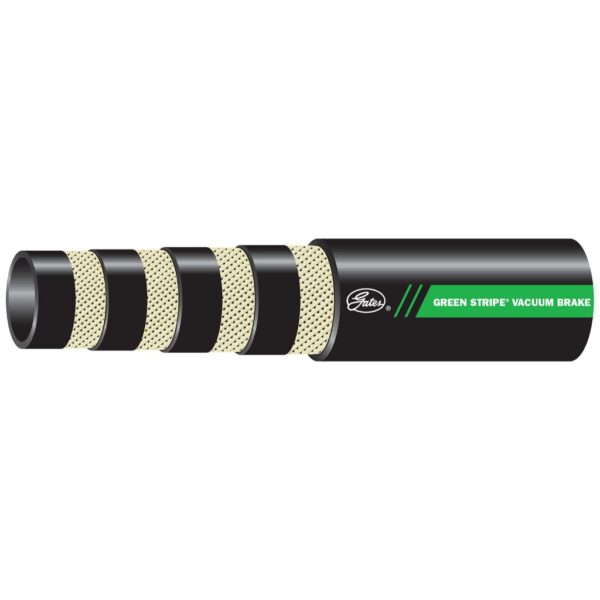

Green Stripe® Vacuum Brake Hose is an extra heavy–duty hose designed to fit most air brake systems on trucks, trailers and other heavy equipment.
Description
- Exceeds SAE J1403, Type H requirements.
- Complies with DOT FMVSS 106VH requirements.
Additional information
Weight | 21.5 lbs |
---|---|
Dimensions | 21.625 × 5.125 × 24 in |
Automative Part Number | 27213 |
Product Number | 31454477 |
Hose Pressure | Constant Pressure-Low |
Tube Material | EPDM |
Reinforcement | 2-braid, textile |
Cover Type | Standard |
Cover Material | EPDM |
Cover Color | Black |
Tube Color | Black |
Min Temp © | -40 |
Max Temp © | 125 |
Min Temp (F) | -40 |
Max Temp (F) | 257 |
Dash Size | 12 |
Hose ID (in) | 0.75 |
Hose ID (mm) | 19.1 |
Hose OD (in) | 1.1875 |
Hose OD (mm) | 30.2 |
Length (ft) | 50 |
Length (m) | 15 |
Dynamic WP (psi) | 200 |
Dynamic WP (bar) | 13.75 |
Min. Burst Pressure (psi) | 800 |
Min. Burst Pressure (bar) | 55 |
Vacuum (in Hg) | 30 |
Vacuum (mm Hg) | 762 |
SAE Spec 1 | J1403 |
DOT | DOT FMVSS 106 |
GC Base Product | Green Stripe® Vacuum Brake Hose |
