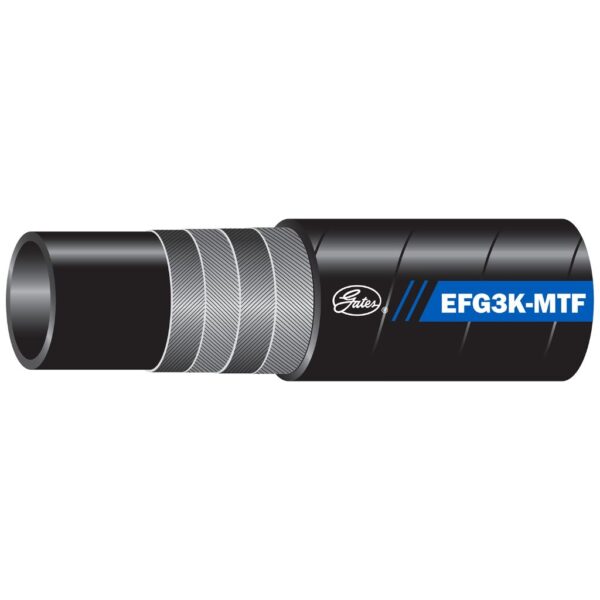

32EFG3K-MTF XLL
Product Code: 32efg3k-mtf-xll
You must be logged in.
EFG3K is recommended for very high-pressure, high-impulse hydraulic applications and is compatible with biodegradable hydraulic fluids like polyolester, polyglycol and vegetable oil as well as standard petroleum-based fluids. Exceeds all performance requirements for ISO 18752 Grade D, SAE 100R12, EN 856 R12, performance requirements of EN 856 4SP, and ISO 3862 Type R12.
Options
Description
- The optional MegaTuff™ cover lasts up to 300 times longer than standard hose during hose-to-hose and hose-to-metal abrasion tests per ISO 6945 and offers superior ozone and weathering resistance.
- Available in 121′ through 200′ continuous lengths.
- For use with GlobalSpiral™ Couplings [G20 Series], GlobalSpiral™ OnePiece Couplings [G21 Series, -20 Only], GlobalSpiral™ Plus Couplings [G22 Series], Stainless Steel Braid Couplings [G17 Series] and Stainless Steel Spiral Couplings [G18 Series].
- Superior flex impulse performance: Tested to 1,000,000 impulse cycles at 50% of EN 856 R12 and SAE 100R12 bend radii.
- Meets Flame Resistance Acceptance Designation MSHA 2G.
Additional information
| Weight | 592 lbs |
|---|---|
| Dimensions | 48.375 × 48.375 × 14.75 in |
| Product Number | 46512206 |
| Hose Pressure | Constant Pressure-Very High |
| Tube Material | Nitrile – Type C |
| Tube Characteristics | Oil Resistant |
| Reinforcement | 4-spiral, wire |
| Cover Type | MegaTuff |
| Cover Material | MegaTuff |
| Cover Color | Black |
| Tube Color | Black |
| Min Temp © | -40 |
| Max Temp © | 121 |
| Min Temp (F) | -40 |
| Max Temp (F) | 250 |
| Dash Size | 32 |
| Hose ID (in) | 2 |
| Hose ID (mm) | 50.8 |
| Hose OD (in) | 2.63 |
| Hose OD (mm) | 66.8 |
| Length (ft) | 200 |
| Length (m) | 61 |
| Dynamic WP (psi) | 3000 |
| Dynamic WP (bar) | 206.8 |
| Min. Burst Pressure (psi) | 12000 |
| Min. Burst Pressure (bar) | 827.4 |
| Min. Bend Radius (in) | 25 |
| Min. Bend Radius (mm) | 635 |
| Coupling Recommendation 1 | GlobalSpiral™ Plus Couplings [G22 Series] |
| ISO Spec 1 | 18753 Grade D |
| ISO Spec 2 | 3862 R12 |
| EN Spec 1 | 857 R12 |
| EN Spec 2 | 856 4SP |
| SAE Spec 1 | 100R12 |
| Meets MSHA 2G | YES |
| GC Base Product | EFG3K Spiral Wire Hose – SAE 100R12 – MegaTuff® Cover |
