3RFS XREEL
Product Code: 3rfs-xreel
You must be logged in.

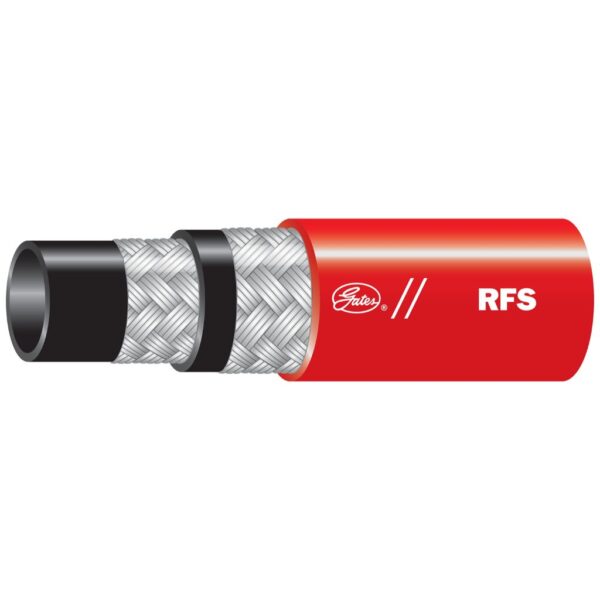

RFS hose is recommended for low-pressure powder fre suppressant applications in mining, forestry and fire fighting equipment.
Description
- Recommended For: Low-pressure powder fire suppressant applications in mining, forestry and firefighting equipment. The red cover is for easy visual identification in these applications.
- For use with MegaCrimp™ Couplings [G25 Series] and Power Crimp™ Couplings.
- The red cover is for easy visual identifcation in these applications.
- Meets performance requirements of SAE 100R1 and meets Flame Resistance Acceptance Designation MSHA 2G.
Additional information
| Weight | 56.32 lbs |
|---|---|
| Dimensions | 14 × 14 × 17.25 in |
| Automative Part Number | H24100-03F |
| Product Number | 46572145 |
| Hose Pressure | Variable Pressure-High |
| Tube Material | Nitrile – Type C |
| Tube Characteristics | Oil Resistant |
| Reinforcement | 1-braid, wire |
| Cover Type | Standard |
| Cover Material | Modified Nitrile – Type C2 |
| Cover Color | Red |
| Tube Color | Black |
| Min Temp © | -40 |
| Max Temp © | 100 |
| Min Temp (F) | -40 |
| Max Temp (F) | 212 |
| Dash Size | 3 |
| Hose ID (in) | 0.1875 |
| Hose ID (mm) | 4.8 |
| Hose OD (in) | 0.45 |
| Hose OD (mm) | 11.4 |
| Length (ft) | 440 |
| Length (m) | 134 |
| Dynamic WP (psi) | 3000 |
| Dynamic WP (bar) | 206.8 |
| Min. Burst Pressure (psi) | 12000 |
| Min. Burst Pressure (bar) | 827.4 |
| Min. Bend Radius (in) | 3 |
| Min. Bend Radius (mm) | 76.2 |
| Coupling Recommendation 1 | MegaCrimp® Couplings [G25 Series] |
| Coupling Recommendation 2 | Power Crimp™ Couplings |
| SAE Spec 1 | 100R1 |
| Meets MSHA 2G | YES |
| GC Base Product | Red Fire Suppressant Hose |
