        Product Code: 4j2at-x50ft
        You must be logged in.

        J2AT hose is recommended for hydraulic jack applications. Meets Material Handling Institute specification IJ 100 for hydraulic hose and assemblies used with jacking systems. Up to 10,000 psi static pressure only.

        Description

        • Coupling Recommendations: MegaCrimp™ [G25 Series] 4G-4MP, 4G-4MPLN, 4G-6MP, 4G-6MPLN, 6G-6MP, 6G-6MPLN, 6G-4MP and 6G-4MPLN Male Pipe and Male Pipe Long Nose couplings
        • Temperature Range: -40°F to +120°F (-40°C to +49°C)
        • Meets Flame Resistance Acceptance Designation MSHA 2G

        Additional information

        Weight 13.45 lbs
        Dimensions 18.375 × 18.375 × 3.25 in
        Automative Part Number

        85650

        Product Number

        46574880

        Hose Pressure

        Constant Pressure-Very High

        Tube Material

        Nitrile – Type C

        Tube Characteristics

        Oil Resistant

        Reinforcement

        2-braid, wire

        Cover Type

        Standard

        Cover Material

        Nitrile/PVC – Type C2

        Cover Color

        Black

        Tube Color

        Black

        Min Temp ©

        -40

        Max Temp ©

        49

        Min Temp (F)

        -40

        Max Temp (F)

        120

        Dash Size

        4

        Hose ID (in)

        0.25

        Hose ID (mm)

        6.4

        Hose OD (in)

        0.59

        Hose OD (mm)

        15

        Length (ft)

        50

        Length (m)

        15

        Dynamic WP (psi)

        10000

        Dynamic WP (bar)

        689.5

        Min. Burst Pressure (psi)

        20000

        Min. Burst Pressure (bar)

        1379

        Min. Bend Radius (in)

        2

        Min. Bend Radius (mm)

        50.8

        Coupling Recommendation 1

        MegaCrimp® Male Pipe Long Nose

        Other Spec

        Material Handling Institute IJ100, hose/assemblies

        Meets MSHA 2G

        YES

        GC Base Product

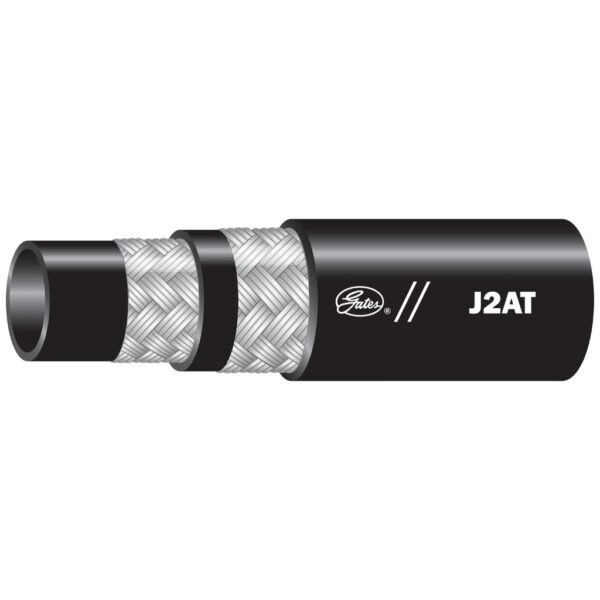

        J2AT 2-Wire Braid Jack Hose – 10,000 Static Pressure Only
