4M6K XREEL
Product Code: 4m6k-xreel

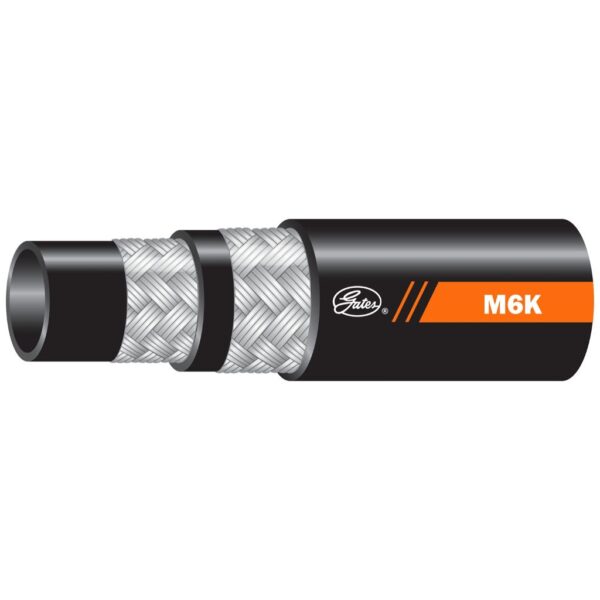

Global M6K is recommended for high-pressure hydraulic applications. Easy to route and to install in extremely tight areas. Exceeds ISO 18752 Grade B. Recommended Couplings: MegaCrimp® Couplings, Stainless Steel B Couplings.
Description
- Compatible with biodegradable hydraulic fluids like polyolester, polyglycols and vegetable oils as well as petroleum-based fluids.
- For use with MegaCrimp™ Couplings [G25 Series] and Stainless Steel Braid Couplings [G17 Series].
- Provides bend radius up to 1/3 of the SAE specifcation and greater flexibility for easier routing.
- Tested to 600,000 impulse cycles, 3 times the industry standard.
- Meets Flame Resistance Acceptance Designation MSHA 2G.
Additional information
| Weight | 114.4 lbs |
|---|---|
| Dimensions | 16 × 16 × 16.875 in |
| Automative Part Number | 70599 |
| Product Number | 46572697 |
| Hose Pressure | Constant Pressure-High |
| Tube Material | Nitrile – Type C |
| Tube Characteristics | Hyd Fluids, Phosphate Esters, Water Glycol |
| Reinforcement | 2-braid, wire |
| Cover Type | Standard |
| Cover Material | Nitrile/PVC – Type C2 |
| Cover Color | Black |
| Tube Color | Black |
| Min Temp © | -40 |
| Max Temp © | 100 |
| Min Temp (F) | -40 |
| Max Temp (F) | 212 |
| Dash Size | 4 |
| Hose ID (in) | 0.25 |
| Hose ID (mm) | 6.4 |
| Hose OD (in) | 0.58 |
| Hose OD (mm) | 14.7 |
| Length (ft) | 440 |
| Length (m) | 134 |
| Dynamic WP (psi) | 6000 |
| Dynamic WP (bar) | 413.7 |
| Min. Burst Pressure (psi) | 24000 |
| Min. Burst Pressure (bar) | 1654.7 |
| Min. Bend Radius (in) | 2 |
| Min. Bend Radius (mm) | 50.8 |
| Coupling Recommendation 1 | MegaCrimp® Couplings [G25 Series] |
| Coupling Recommendation 2 | Stainless Steel Braid Couplings [G17 Series] |
| Meets MSHA 2G | YES |
| GC Base Product | Global M6K Mega6000® Hose |
