        Product Code: 6ps188-x25ft
        You must be logged in.

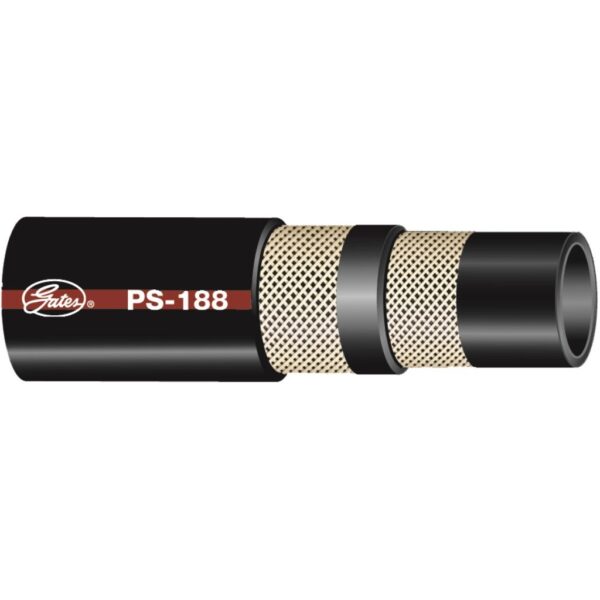

        Gates PS188 Power Steering Hose is recommended for power steering pressure lines.

        Description

        • Recommended For: Power steering pressure lines.
        • Synthetic rubber hose cover developed specifcally to resist rugged underhood environments Type CSM.
        • Use with one-piece Gates Power Crimp™ power steering couplings (Refer to Gates Hydraulic catalog for details).
        • Meets SAE J2050 Type 1 performance requirements and SAE J2050 Class B (light weight specifcations).

        Additional information

        Weight 4.23 lbs
        Dimensions 12.375 × 3.25 × 12.25 in
        Automative Part Number

        86049

        Product Number

        33170107

        Hose Pressure

        Variable Pressure-Low

        Tube Material

        CSM – Type M

        Tube Characteristics

        High Temperature, Power Steering Fluid Resistant

        Reinforcement

        2-braid, high-strength nylon

        Cover Type

        Standard

        Cover Material

        CSM

        Cover Color

        Black

        Tube Color

        Black

        Min Temp ©

        -40

        Max Temp ©

        149

        Min Temp (F)

        -40

        Max Temp (F)

        300

        Dash Size

        6

        Hose ID (in)

        0.375

        Hose ID (mm)

        9.5

        Hose OD (in)

        0.71

        Hose OD (mm)

        18

        Length (ft)

        25

        Length (m)

        8

        Dynamic WP (psi)

        1500

        Dynamic WP (bar)

        103.4

        Min. Burst Pressure (psi)

        6000

        Min. Burst Pressure (bar)

        413.7

        Min. Bend Radius (in)

        3.25

        Min. Bend Radius (mm)

        82.6

        Coupling Recommendation 1

        Permanent Power Steering Couplings [G50 Series]

        SAE Spec 1

        J2050

        GC Base Product

        PS188 Power Steering Hose
