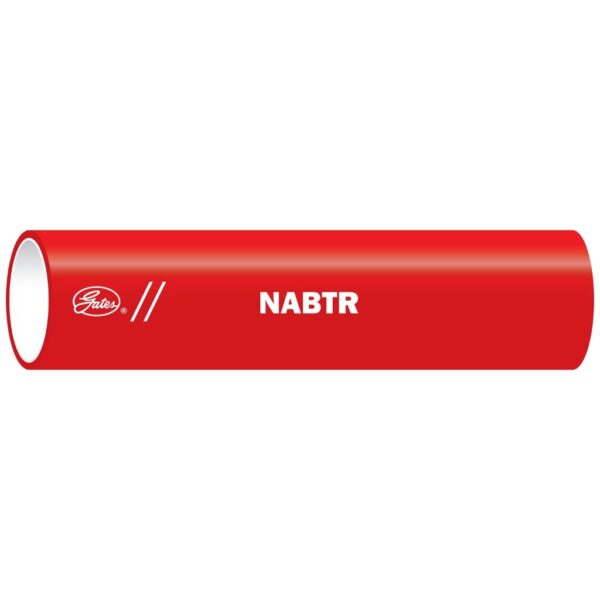

4NABTR X100FT
Product Code: 4nabtr-x100ft
You must be logged in.
Truck, bus and mobile air brake, and service lines where heat and battery acids are not present.
Options
2-5nabta-x100ft
2nabta-x100ft
2nabta-xlgreel
3nabta-x100ft
4nabta-x100ft
4nabta-xlg-reel
4nabtb-x100ft
4nabtb-xlgreel
4nabtb-xreel
4nabtg-x100ft
4nabtg-xreel
4nabtn-xreel
4nabto-x100ft
4nabtp-xlgreel
4nabtr-x100ft
4nabtr-xreel
4nabts-xreel
4nabty-x100ft
4nabty-xreel
5nabta-x100ft
5nabta-xreel
6nabta-x100ft
6nabta-xlgreel
6nabta-xreel
6nabtb-x100ft
6nabtb-xlgreel
6nabtb-xreel
6nabtg-x100ft
6nabtg-xlgreel
6nabtg-xreel
6nabtn-xreel
6nabto-x100ft
6nabto-xreel
6nabtr-x100ft
6nabtr-xlgreel
6nabtr-xreel
6nabtw-xreel
6nabty-x100ft
6nabty-xreel
8nabta-x100ft
8nabta-xreel
8nabtb-x100ft
8nabtb-xreel
8nabtg-x100ft
8nabtg-xreel
8nabto-x100ft
8nabtr-x100ft
8nabtr-xreel
8nabts-xreel
8nabty-x100ft
10nabta-x50ft
10nabta-xreel
10nabtb-x50ft
10nabtg-x50ft
10nabtg-xreel
10nabto-x50ft
10nabto-xreel
10nabtr-x50ft
10nabtr-xreel
10nabty-x50ft
12nabta-x50ft
12nabta-xreel
12nabtb-x50ft
12nabtg-x50ft
12nabto-x50ft
12nabtr-x50ft
12nabty-x50ft
Description
- Conforms to SAE J844 specifications.
- Meets DOT FMVSS 106-74.
Additional information
| Weight | 1.25 lbs |
|---|---|
| Dimensions | 14 × 14 × 4 in |
| Automative Part Number | H30052-04 |
| Product Number | 43270063 |
| Hose Pressure | Constant Pressure-Low |
| Tube Material | Heat/Light Stabilized Seamless Extruded Nylon |
| Reinforcement | Nylon – Type A |
| Cover Type | Not Applicable |
| Cover Material | Nylon |
| Cover Color | Red |
| Min Temp © | -40 |
| Max Temp © | 93 |
| Min Temp (F) | -40 |
| Max Temp (F) | 200 |
| Dash Size | 4 |
| Hose OD (in) | 0.25 |
| Hose OD (mm) | 6.35 |
| Length (ft) | 100 |
| Length (m) | 30.5 |
| Min. Burst Pressure (psi) | 1204 |
| Min. Burst Pressure (bar) | 83.01 |
| Min. Bend Radius (in) | 1 |
| Min. Bend Radius (mm) | 25.4 |
| Coupling Recommendation 1 | Compression |
| Coupling Recommendation 2 | SureLok™ Couplings |
| SAE Spec 1 | J844 |
| DOT | DOT FMVSS 106-74 |
| GC Base Product | Nylon Tubing Compression Nylon Air Brake Tubing |
