Product Code: 4th8nc-x50ft
You must be logged in.

Recommended for use with petroleum, water base and synthetic hydraulic fluids. Applications include power and telephone mobile equipment (cherry pickers), lubrication lines, blowout preventer control lines, hydraulic lifts and farm and construction machinery. Orange color TH8SNC meets SAE 100R8 non-conductivity requirements and meets or exceeds performance requirements of SAE 100R8 with a signifcantly tighter bend radius. Multiline available.

Description

  • Recommended For: Use with petroleum, water base and synthetic hydraulic fluids. Applications include: power and telephone mobile equipment (cherry pickers), lubrication lines, blowout preventer control lines, hydraulic lifts and farm and construction machinery.
  • For use with MegaCrimp™ Couplings [G25 Series].
  • Orange color TH8SNC meets SAE 100R8 non-conductivity requirements and meets or exceeds performance requirements of SAE 100R8 with a signifcantly tighter bend radius.
  • Meets SAE 100R8 Electrical Conductivity Test; maximum leakage should not exceed 50 microamperes when subjected to 75 kV/Ft. for fve minutes.

Additional information

Weight 7.34 lbs
Dimensions 20.625 × 20.625 × 5.75 in
Automative Part Number

85419

Product Number

44671187

Hose Pressure

Variable Pressure-High

Tube Material

Seamless Nylon – Type Z

Tube Characteristics

Hyd Fluids, Phosphate Esters, Water Glycol

Reinforcement

2-braid, polyester

Cover Type

Standard

Cover Material

Urethane

Cover Characteristic

Non-Perforated

Cover Color

Orange

Tube Color

Black

Min Temp ©

-54

Max Temp ©

93

Min Temp (F)

-65

Max Temp (F)

200

Dash Size

4

Hose ID (in)

0.25

Hose ID (mm)

6.4

Hose OD (in)

0.61

Hose OD (mm)

15.5

Length (ft)

40

Length (m)

12

Dynamic WP (psi)

5000

Dynamic WP (bar)

344.7

Min. Burst Pressure (psi)

20000

Min. Burst Pressure (bar)

1379

Min. Bend Radius (in)

2

Min. Bend Radius (mm)

50.8

Coupling Recommendation 1

MegaCrimp® Couplings [G25 Series]

SAE Spec 1

100R8

Temp Note 1

Petroleum, Synthetic Oils

Temp Note 2

Water/Oil, Water-based Fluids to +158°F

GC Base Product

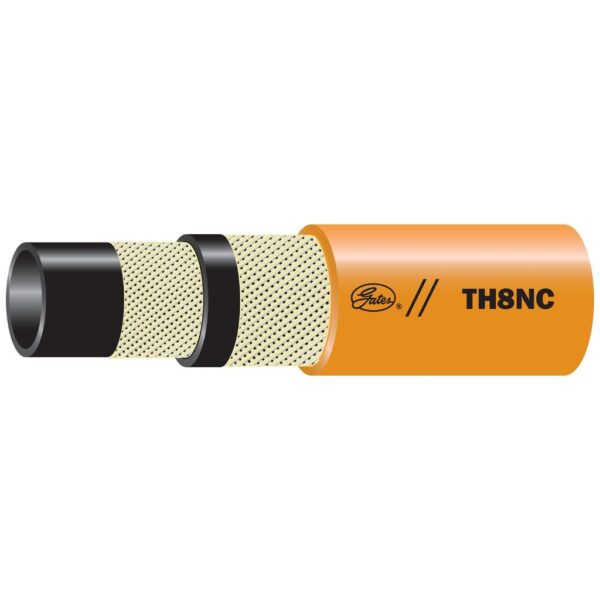

TH8NC Thermoplastic Non-Conductive Hydraulic Hose – SAE 100R8
