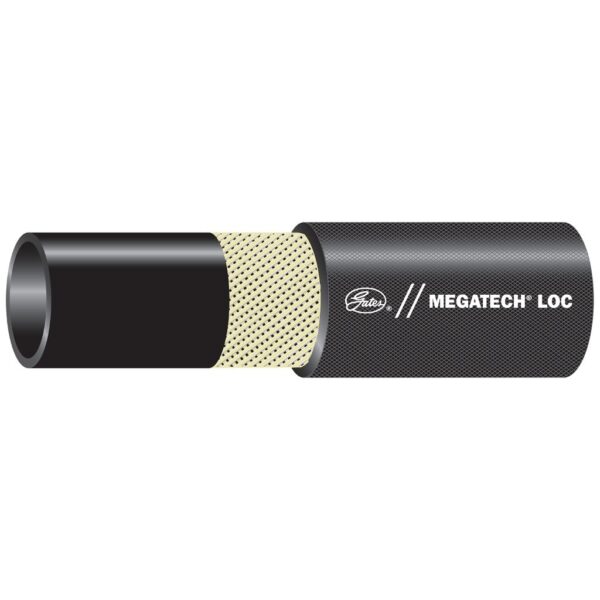

6MEGATECH LOC XREEL
LOC hose is recommended for high-temperature (+300°F) transmission oil cooler lines, pressurized hot oil return lines and turbocharger oil supply lines. Not recommended for gasoline or diesel fuel applications.
Options
Description
- Recommended For: High-temperature (+300F) transmission oil cooler lines, pressurized hot oil return lines and turbocharger oil supply lines. Not recommended for gasoline or diesel fuel applications.
- For use with Field Attachable LOC Couplings [G36 Series] and MegaCrimp™ Couplings [G25 Series].
- 300 psi constant pressure for all ID’s.
Additional information
| Weight | 72 lbs |
|---|---|
| Dimensions | 18 × 18 × 17.5 in |
| Automative Part Number | 76994 |
| Product Number | 43190107 |
| Hose Pressure | Constant Pressure-Low |
| Tube Material | CPE – Type J |
| Tube Characteristics | Chemical, Temperature Resistant |
| Reinforcement | 1-braid, textile |
| Cover Type | Standard |
| Cover Material | Textile Braid Impregnated w/ Synthetic Rubber |
| Cover Color | Black |
| Tube Color | Black |
| Min Temp © | -40 |
| Max Temp © | 149 |
| Min Temp (F) | -40 |
| Max Temp (F) | 300 |
| Dash Size | 6 |
| Hose ID (in) | 0.375 |
| Hose ID (mm) | 9.5 |
| Hose OD (in) | 0.64 |
| Hose OD (mm) | 16.3 |
| Length (ft) | 600 |
| Length (m) | 183 |
| Dynamic WP (psi) | 300 |
| Dynamic WP (bar) | 20.7 |
| Min. Burst Pressure (psi) | 1200 |
| Min. Burst Pressure (bar) | 82.7 |
| Min. Bend Radius (in) | 3 |
| Min. Bend Radius (mm) | 76.2 |
| Coupling Recommendation 1 | Field Attachable LOC Couplings [G36 Series] |
| GC Base Product | MegaTech® LOC 1-Fiber Braid High-Temp Lock-On Hose |
