Product Code: 8m4kl-xreel
You must be logged in.

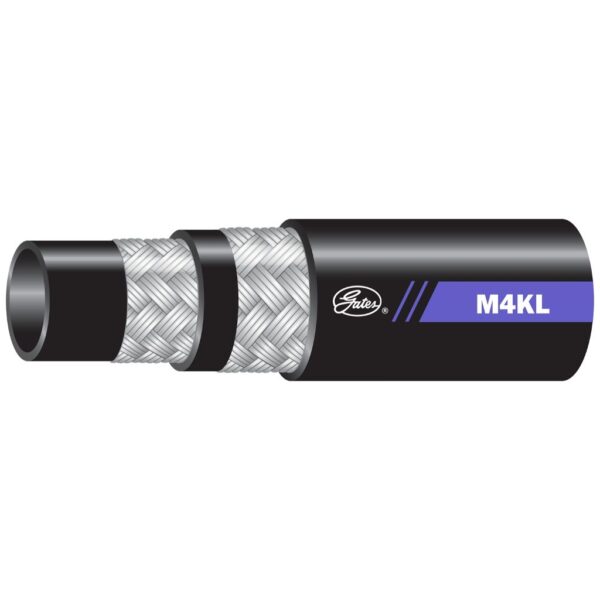

Global M4KL Mega400™ PolarFlex® Low-Temp hose is recommended for extremely low temperature high-pressure hydraulic applications. Easy to route and to install in extremely tight areas. Exceeds SAE 100R19 and ISO11237 R19. Recommended Couplings: GlobalSpiral™ Couplings, MegaCrimp® Couplings, Stainless Steel B Couplings (-4 through -8), Stainless Steel S Couplings (-12 and -16).

Description

  • Recommended for high-pressure hydraulic applications in low-temperature environments.
  • For use with GlobalSpiral™ Couplings [G20 Series], MegaCrimp™ Couplings [G25 Series], Stainless Steel Braid Couplings [G17 Series] and Stainless Steel Spiral Couplings [G18 Series].
  • Resistant to cover cracking at low temperature and tight bend radius.
  • Provides bend radius up to 1/3 of the SAE specifcation and greater flexibility for easier routing.
  • Tested to 600,000 impulse cycles, 3 times the industry standard.
  • Meets Flame Resistance Acceptance Designation MSHA 2G.

Additional information

Weight 79.2 lbs
Dimensions 14 × 14 × 17.25 in
Automative Part Number

70151

Product Number

46574473

Hose Pressure

Constant Pressure-High

Tube Material

Nitrile – Type C

Tube Characteristics

Hyd Fluids, Phosphate Esters, Water Glycol

Reinforcement

2-braid, wire

Cover Type

Standard

Cover Material

Polychloroprene (Neoprene) – Type A

Cover Color

Black

Tube Color

Black

Min Temp ©

-57

Max Temp ©

100

Min Temp (F)

-70

Max Temp (F)

212

Dash Size

8

Hose ID (in)

0.5

Hose ID (mm)

12.7

Hose OD (in)

0.82

Hose OD (mm)

20.8

Length (ft)

220

Length (m)

67

Dynamic WP (psi)

4000

Dynamic WP (bar)

275.8

Min. Burst Pressure (psi)

16000

Min. Burst Pressure (bar)

1103.2

Min. Bend Radius (in)

3.5

Min. Bend Radius (mm)

88.9

Coupling Recommendation 1

GlobalSpiral™ Couplings [G20 Series]

Coupling Recommendation 2

MegaCrimp® Couplings [G25 Series]

Coupling Recommendation 3

Stainless Steel Braid Couplings [G17 Series]

ISO Spec 1

18752 Grade B

ISO Spec 2

11237 R19

SAE Spec 1

100R19

Meets MSHA 2G

YES

GC Base Product

Global M4KL Mega4000® PolarFlex® Hose – SAE 100R19
