        Product Code: 10gth-x25ft
        You must be logged in.

        Recommended for high-temperature, low pressure hydraulic oil lines, heavy-duty transmission oil cooler lines and glycol anti-freeze solutions.

        Description

        • Recommended For: Hydraulic oil lines, heavy-duty transmission oil cooler lines and glycol anti-freeze solutions.
        • For use with MegaCrimp™ Couplings [G25 Series] and Power Crimp™ Couplings.
        • Meets or exceeds requirements of SAE 100R6.

        Additional information

        Weight 5.18 lbs
        Dimensions 16.376 × 2.876 × 16.376 in
        Automative Part Number

        86695

        Product Number

        33194268

        Hose Pressure

        Variable Pressure-Low

        Tube Material

        Nitrile – Type C

        Tube Characteristics

        Hyd Fluids, Phosphate Esters, Water Glycol

        Reinforcement

        1-braid, textile

        Cover Type

        Standard

        Cover Material

        Polychloroprene (Neoprene) – Type A

        Cover Color

        Black

        Tube Color

        Black

        Min Temp ©

        -40

        Max Temp ©

        135

        Min Temp (F)

        -40

        Max Temp (F)

        275

        Dash Size

        10

        Hose ID (in)

        0.625

        Hose ID (mm)

        15.9

        Hose OD (in)

        0.91

        Hose OD (mm)

        23.1

        Length (ft)

        25

        Length (m)

        8

        Dynamic WP (psi)

        350

        Dynamic WP (bar)

        24.1

        Min. Burst Pressure (psi)

        1400

        Min. Burst Pressure (bar)

        96.5

        Min. Bend Radius (in)

        5

        Min. Bend Radius (mm)

        127

        Vacuum (in Hg)

        15

        Vacuum (mm Hg)

        381

        Coupling Recommendation 1

        MegaCrimp® Couplings [G25 Series]

        SAE Spec 1

        100R6

        Temp Note 1

        Intermittent to +300°F

        GC Base Product

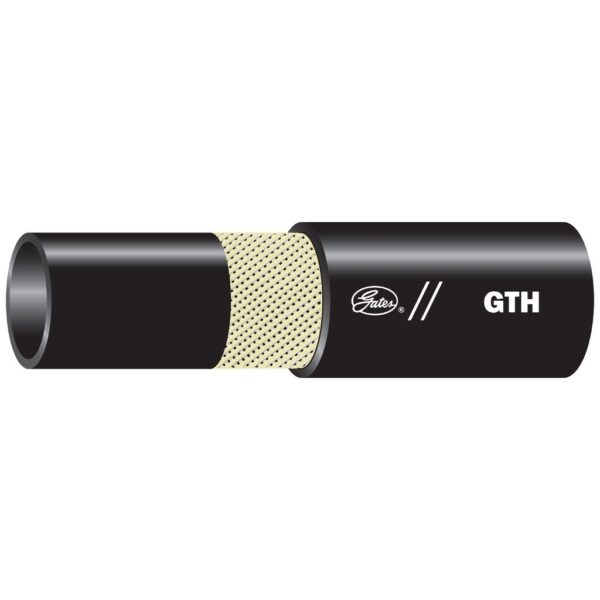

        GTH High Temperature 1-Fiber Braid Hose – SAE 100R6
