10MXG4K-XTPX100FT REEL

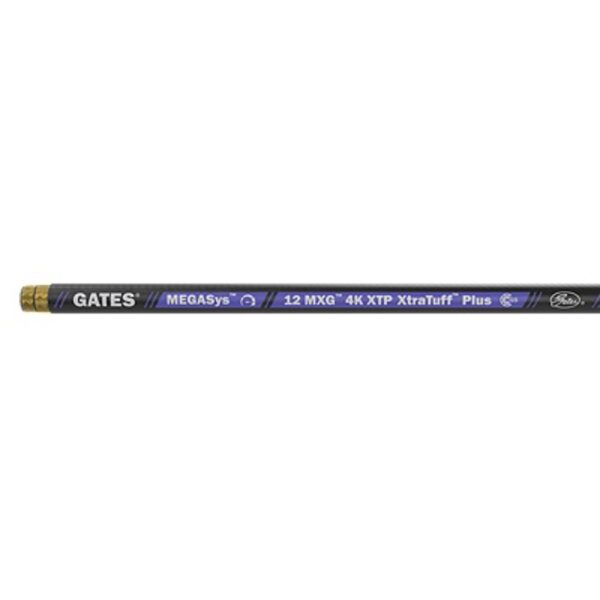

Built with Gates patented Xpiral™ woven spiral technology, MegaSys™ MXG™ 4K hose is lightweight, highly flexible, and qualified to ONE MILLION impulse cycles — it’s a drop in replacement for conventional spiral hoses. Using design expertise and processing technologies, we engineered a hydraulic hose that exceeds the performance of wire spiral constructions but with the lower weight and flexibility driven by Gates materials science technology.
Description
- Recommended For: Very high-pressure, high-impulse abrasive applications. Compatible with biodegradable hydraulic fluids like polyolester, polyglycol and vegetable oil as well as standard petroleum based fluids.
- For use with GlobalSpiral™ Couplings [G20 Series] and MegaCrimp™ Couplings [G25 Series] (-6 to -12 Only).
- Tested to industry-leading 1,000,000 impulse cycles with GlobalSpiral™ and 600,000 impulse cycles with MegaCrimp™.
- XtraTuff™ Plus cover on MXG 4K hose comes standard and offers 25 times the abrasion resistance of standard covers, as well as superior ozone resistance.
- Compact construction with excellent flexibility and lower force-to-bend for faster and more ergonomic installation (force-to-bend is 40% better and OD is 9% smaller).
- 30% lighter weight for easier handling and installation.
- Exceeds all criteria of SAE 100R19 and ISO 18752 280DC; exceeds performance criteria of SAE 100R12, EN 856 R12, ISO 3862 R12 (Size -16 also exceeds EN 856 4SP performance requirements).
- MXG4K-XTP passes SAE J1754 Class A cool-down requirements with GlobalSpiral™ couplings and meets Flame Resistant Acceptance Designation MSHA 2G.
Additional information
| Weight | 47 lbs |
|---|---|
| Dimensions | 18 × 18 × 17.5 in |
| Automative Part Number | 70774 |
| Product Number | 46780034 |
| Hose Pressure | Constant Pressure-Very High |
| Tube Material | Nitrile – Type C |
| Tube Characteristics | Synthetic Rubber |
| Reinforcement | Patented Xpiral™ woven spiral |
| Cover Type | XtraTuff Plus |
| Cover Material | Nitrile – Type C2 |
| Cover Color | Black |
| Tube Color | Black |
| Min Temp © | -40 |
| Max Temp © | 121 |
| Min Temp (F) | -40 |
| Max Temp (F) | 250 |
| Dash Size | 10 |
| Hose ID (in) | 0.625 |
| Hose ID (mm) | 15.9 |
| Hose OD (in) | 0.99 |
| Hose OD (mm) | 25.1 |
| Length (ft) | 100 |
| Length (m) | 30 |
| Dynamic WP (psi) | 4060 |
| Dynamic WP (bar) | 280 |
| Min. Burst Pressure (psi) | 16240 |
| Min. Burst Pressure (bar) | 1120 |
| Min. Bend Radius (in) | 3.9 |
| Min. Bend Radius (mm) | 100 |
| Coupling Recommendation 1 | GlobalSpiral™ Couplings [G20 Series] |
| Coupling Recommendation 2 | MegaCrimp® Couplings [G25 Series] |
| ISO Spec 1 | 18752 280DC |
| ISO Spec 2 | 3862 R12 |
| EN Spec 1 | 856 R12 |
| SAE Spec 1 | 100R12 |
| SAE Spec 2 | 100R19 |
| Meets MSHA 2G | YES |
| GC Base Product | MXG™ 4K-XTP with XtraTuff™ Plus Cover |
