Product Code: 6mxg4k-xtp-x50ft
You must be logged in.

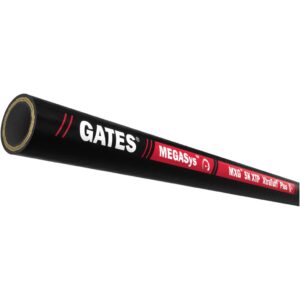

Built with Gates patented Xpiral™ woven spiral technology, MegaSys™ MXG™ 4K hose is lightweight, highly flexible, and qualified to ONE MILLION impulse cycles — it’s a drop in replacement for conventional spiral hoses. Using design expertise and processing technologies, we engineered a hydraulic hose that exceeds the performance of wire spiral constructions but with the lower weight and flexibility driven by Gates materials science technology.

Description

  • Recommended For: Very high-pressure, high-impulse abrasive applications. Compatible with biodegradable hydraulic fluids like polyolester, polyglycol and vegetable oil as well as standard petroleum based fluids.
  • For use with GlobalSpiral™ Couplings [G20 Series] and MegaCrimp™ Couplings [G25 Series] (-6 to -12 Only).
  • Tested to industry-leading 1,000,000 impulse cycles with GlobalSpiral™ and 600,000 impulse cycles with MegaCrimp™.
  • XtraTuff™ Plus cover on MXG 4K hose comes standard and offers 25 times the abrasion resistance of standard covers, as well as superior ozone resistance.
  • Compact construction with excellent flexibility and lower force-to-bend for faster and more ergonomic installation (force-to-bend is 40% better and OD is 9% smaller).
  • 30% lighter weight for easier handling and installation.
  • Exceeds all criteria of SAE 100R19 and ISO 18752 280DC; exceeds performance criteria of SAE 100R12, EN 856 R12, ISO 3862 R12 (Size -16 also exceeds EN 856 4SP performance requirements).
  • MXG4K-XTP passes SAE J1754 Class A cool-down requirements with GlobalSpiral™ couplings and meets Flame Resistant Acceptance Designation MSHA 2G.

Additional information

Weight 13 lbs
Dimensions 20.625 × 20.625 × 5.75 in
Automative Part Number

85011

Product Number

46780007

Hose Pressure

Constant Pressure-Very High

Tube Material

Nitrile – Type C

Tube Characteristics

Synthetic Rubber

Reinforcement

Patented Xpiral™ woven spiral

Cover Type

XtraTuff Plus

Cover Material

Nitrile – Type C2

Cover Color

Black

Tube Color

Black

Min Temp ©

-40

Max Temp ©

121

Min Temp (F)

-40

Max Temp (F)

250

Dash Size

6

Hose ID (in)

0.375

Hose ID (mm)

9.5

Hose OD (in)

0.695

Hose OD (mm)

17.7

Length (ft)

50

Length (m)

15

Dynamic WP (psi)

4060

Dynamic WP (bar)

280

Min. Burst Pressure (psi)

16240

Min. Burst Pressure (bar)

1120

Min. Bend Radius (in)

2.5

Min. Bend Radius (mm)

65

Coupling Recommendation 1

GlobalSpiral™ Couplings [G20 Series]

Coupling Recommendation 2

MegaCrimp® Couplings [G25 Series]

ISO Spec 1

18752 280DC

ISO Spec 2

3862 R12

EN Spec 1

856 R12

SAE Spec 1

100R12

SAE Spec 2

100R19

Meets MSHA 2G

YES

GC Base Product

MXG™ 4K-XTP with XtraTuff™ Plus Cover
