Product Code: 12m2t-x50ft
You must be logged in.

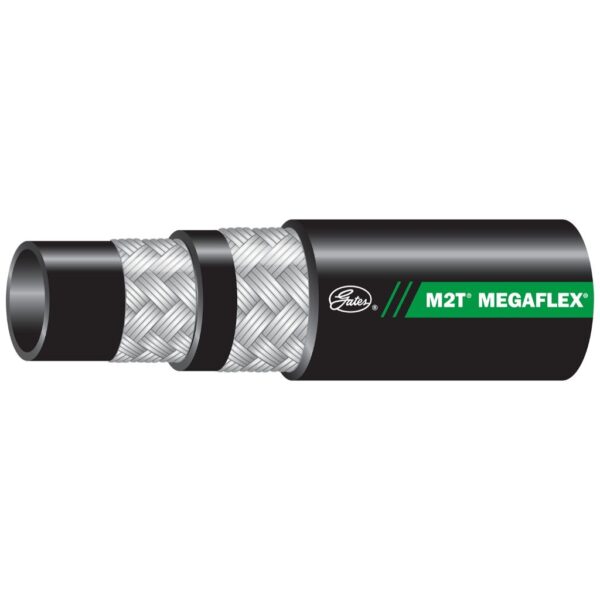

M2T® hose is recommended for high-pressure hydraulic oil line applications. It has smaller exterior dimensions and signifcantly tighter bend radius than competitive R16 hoses, making it easy to route and install in tight areas. M2T hose is compatible with biodegradable hydraulic fluids like polyolester, polyglycols and vegetable oils as well as petroleum-based fluids. Exceeds SAE 100R16, SAE 100R2, ISO 11237 2SC R16 and ISO 1436 2SN R2 working pressure, minimum bend radius requirements and performance requirements of EN 857 2SC and EN 853 2SN. M2T hose has smaller exterior dimensions and significantly tighter bend radius. Also available with XtraTuff™ or MegaTuff™ covers. XtraTuff hose lasts up to 25 times longer than standard hose. MegaTuff hose lasts up to 300 times longer than standard hose during hose-to-hose and hose-to-metal abrasion tests per ISO 6945 and offers superior ozone and weathering resistance.

Description

  • Recommended For: High-pressure hydraulic oil lines.
  • For use with GlobalSpiral™ Couplings [G20 Series], GlobalSpiral™ Plus Couplings [G22 Series], MegaCrimp™ Couplings [G25 Series], Stainless Steel Braid Couplings [G17 Series] and Stainless Steel Spiral Couplings [G18 Series].
  • Provides bend radius up to 1/3 of the SAE specifcation and greater flexibility for easier routing.
  • Tested to industry-leading 600,000 impulse cycles.
  • XtraTuff™ hose lasts up to 25 times longer than standard hose.
  • MegaTuff™ hose lasts up to 300 times longer than standard hose during hose-to-hose and hose-to-metal abrasion tests per ISO 6945 and offers superior ozone and weathering resistance.
  • Meets Flame Resistance Acceptance Designation MSHA 2G.

Additional information

Weight 26.95 lbs
Dimensions 20.625 × 20.625 × 5.75 in
Automative Part Number

85604

Product Number

46571568

Hose Pressure

Variable Pressure-High

Tube Material

Nitrile – Type C

Tube Characteristics

Hyd Fluids, Phosphate Esters, Water Glycol

Reinforcement

2-braid, wire

Cover Type

Standard

Cover Material

Nitrile, PVC Synthetic Rubber

Cover Color

Black

Tube Color

Black

Min Temp ©

-40

Max Temp ©

100

Min Temp (F)

-40

Max Temp (F)

212

Dash Size

12

Hose ID (in)

0.75

Hose ID (mm)

19.1

Hose OD (in)

1.11

Hose OD (mm)

28.2

Length (ft)

50

Length (m)

15

Dynamic WP (psi)

3500

Dynamic WP (bar)

241.3

Min. Burst Pressure (psi)

14000

Min. Burst Pressure (bar)

965.3

Min. Bend Radius (in)

3.8

Min. Bend Radius (mm)

96.5

Coupling Recommendation 1

GlobalSpiral™ Couplings [G20 Series]

Coupling Recommendation 2

MegaCrimp® Couplings [G25 Series]

Coupling Recommendation 3

Stainless Steel Braid Couplings [G17 Series]

ISO Spec 1

11237 2SC R16

ISO Spec 2

1436 2SN R2

EN Spec 1

857 2SC

EN Spec 2

853 2SN

SAE Spec 1

100R16

Meets MSHA 2G

YES

GC Base Product

M2T® MegaFlex® 2-Wire Braid Hose – SAE 100R16
