        Product Code: 12th7nc-x50ft
        You must be logged in.

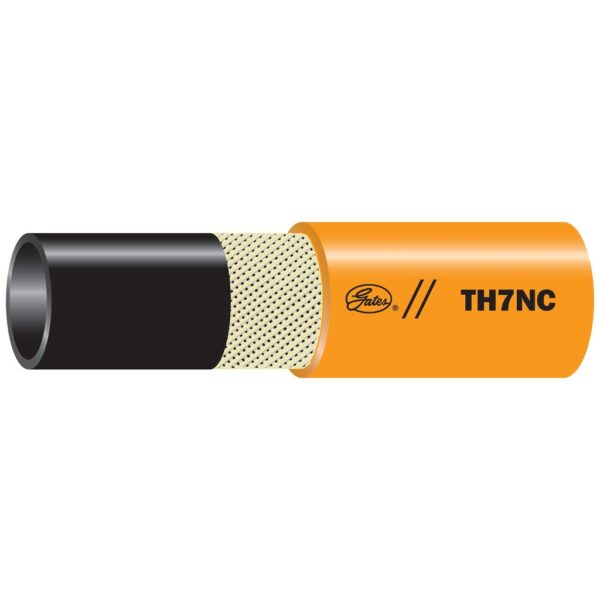

        TH7NC non-conductive hydraulic hose is recommended for petroleum and synthetic hydraulic fluids. Applications include power and telephone mobile equipment (cherry pickers), lubrication lines, blowout preventer control lines, hydraulic lifts and farm and construction machinery. Orange color TH7NC meets SAE 100R7 non–conductivity requirements and meets or exceeds performance requirements of SAE 100R7 with a significantly tighter bend radius. Meets ANSI A92.2 for vehicle mounted aerial devices.

        Description

        • Recommended For: Petroleum and synthetic hydraulic fluids. Applications include: power and telephone mobile equipment (cherry pickers), lubrication lines, blowout preventer control lines, hydraulic lifts and farm and construction machinery.
        • For use with MegaCrimp™ Couplings [G25 Series] and Swage PCTS Couplings [G51 Series].
        • Orange color TH7NC meets SAE 100R7 non-conductivity requirements and meets or exceeds performance requirements of SAE 100R7 with a signifcantly tighter bend radius.
        • Meets SAE 100R7 Electrical Conductivity Test. Maximum leakage should not exceed 50 microamperes when subjected to 75 kV/Ft. for fve minutes.
        • Meets ANSI A92.2 for vehicle mounted aerial devices.

        Additional information

        Weight 13.6 lbs
        Dimensions 29.854 × 28.979 × 8.958 in
        Automative Part Number

        85413

        Product Number

        44671200

        Hose Pressure

        Variable Pressure-Low

        Tube Material

        Seamless Nylon – Type Z

        Tube Characteristics

        Hyd Fluids, Phosphate Esters, Water Glycol

        Reinforcement

        1-braid, polyester

        Cover Type

        Standard

        Cover Material

        Urethane

        Cover Characteristic

        Non-Perforated

        Cover Color

        Orange

        Tube Color

        Black

        Min Temp ©

        -54

        Max Temp ©

        93

        Min Temp (F)

        -65

        Max Temp (F)

        200

        Dash Size

        12

        Hose ID (in)

        0.75

        Hose ID (mm)

        19.1

        Hose OD (in)

        1.05

        Hose OD (mm)

        26.7

        Length (ft)

        50

        Length (m)

        15

        Dynamic WP (psi)

        1250

        Dynamic WP (bar)

        86.2

        Min. Burst Pressure (psi)

        5000

        Min. Burst Pressure (bar)

        344.7

        Min. Bend Radius (in)

        5

        Min. Bend Radius (mm)

        127

        Coupling Recommendation 1

        MegaCrimp® Couplings [G25 Series]

        SAE Spec 1

        100R7

        Other Spec

        ANSI A92.2 for vehicle mounted aerial devices

        Temp Note 1

        Petroleum, Synthetic Oils

        Temp Note 2

        Water/Oil, Water-based Fluids to +158°F

        GC Base Product

        TH7NC Thermoplastic Non-Conductive Hydraulic Hose – SAE 100R7
