        Product Code: 16c14-x25ft
        You must be logged in.

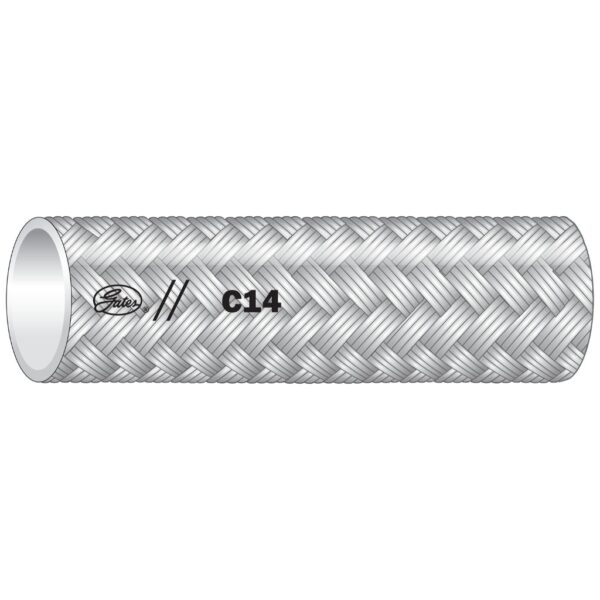

        C14 PTFE hose is recommended for air compressor discharge, hot oil and fluids, hot and greasy environments.

        Description

        • Recommended for air compressor discharge, hot oil and fluids, hot and greasy environments.
        • For use with Brass and Stainless Steel C14 Couplings [G40 Series].

        Additional information

        Weight 6.75 lbs
        Dimensions 14.5 × 7 × 6 in
        Automative Part Number

        85706

        Product Number

        77521625

        Hose Pressure

        Variable Pressure-Low

        Tube Material

        PTFE – Type A

        Tube Characteristics

        Non-Conductive, Smooth Bore

        Reinforcement

        1-braid, stainless steel

        Cover Type

        Standard

        Cover Material

        Stainless Steel Wire 304

        Cover Color

        Silver

        Tube Color

        White

        Min Temp ©

        -54

        Max Temp ©

        204

        Min Temp (F)

        -65

        Max Temp (F)

        400

        Dash Size

        16

        Hose ID (in)

        0.875

        Hose ID (mm)

        22.2

        Hose OD (in)

        1.03

        Hose OD (mm)

        26.2

        Length (ft)

        25

        Length (m)

        8

        Dynamic WP (psi)

        800

        Dynamic WP (bar)

        55.2

        Min. Burst Pressure (psi)

        3500

        Min. Burst Pressure (bar)

        241.3

        Min. Bend Radius (in)

        9

        Min. Bend Radius (mm)

        228.6

        Vacuum (in Hg)

        14

        Vacuum (mm Hg)

        356

        Working Pressure Note

        WP (psi) at 72°F=1000; Dyn WP shown is at 450°F

        Burst Pressure Note

        Min BP (psi) at 72°F=4000; BP shown is at 450°F

        Coupling Recommendation 1

        Brass, Stainless Steel C14 Couplings [G40 Series]

        SAE Spec 1

        100R14 Type A

        Temp Note 1

        Static to +450°F

        GC Base Product

        C14 PTFE Hose – Non-Conductive – SAE100R14 Type A
