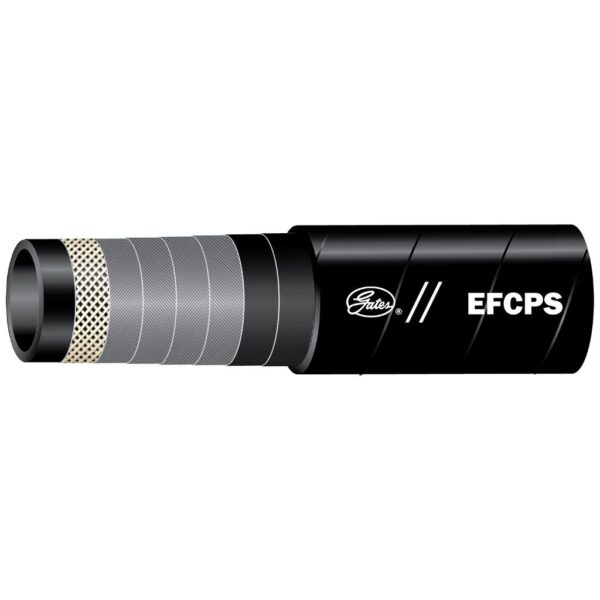

20EFCPS XLL
Product Code: 20efcps-xll
You must be logged in.
Recommended for high-pressure hydraulic lines in longwall mining equipment and roof-support systems; petroleum-based or water emulsion fluids. Four spiral wire construction with static and dynamic pressure ratings listed on the hose.
Options
Description
- Recommended For: High-pressure hydraulic lines in longwall mining equipment and roof-support systems; petroleum-based or water emulsion fluids.
- Recommended couplings: GlobalSpiral™ (-8, -12, -16, -20) GSP (-24 and -32).
- MegaTuff™ hose lasts up to 300 times longer than standard hose during hose-to-hose and hose-to-metal abrasion tests per ISO 6945.
- Dynamic working pressure means frequent pressure surges.
- Static working pressure means very little pressure surging.
- Superior to SAE and ISO Specifications.
Additional information
| Weight | 529.6 lbs |
|---|---|
| Dimensions | 41.125 × 41.125 × 10.25 in |
| Product Number | 46511701 |
| Hose Pressure | Constant Pressure-Extremely High |
| Tube Material | NBR |
| Tube Characteristics | Oil Resistant |
| Reinforcement | 6-spiral, wire |
| Cover Type | Standard |
| Cover Material | Polychloroprene (Neoprene) |
| Cover Color | Black |
| Tube Color | Black |
| Min Temp © | -40 |
| Max Temp © | 121 |
| Min Temp (F) | -40 |
| Max Temp (F) | 250 |
| Dash Size | 20 |
| Hose ID (in) | 1.25 |
| Hose ID (mm) | 31.8 |
| Hose OD (in) | 1.97 |
| Hose OD (mm) | 50 |
| Length (ft) | 200 |
| Length (m) | 61 |
| Dynamic WP (psi) | 6000 |
| Dynamic WP (bar) | 413.7 |
| Min. Burst Pressure (psi) | 24000 |
| Min. Burst Pressure (bar) | 1654.7 |
| Min. Bend Radius (in) | 16.5 |
| Min. Bend Radius (mm) | 419.1 |
| Coupling Recommendation 1 | GlobalSpiral™ Couplings [G20 Series] |
| EN Spec 1 | 856 4SH |
| Meets MSHA 2G | YES |
| GC Base Product | EF Coal Power/Longwall |
