20G2L X50FT
Product Code: 20g2l-x50ft
You must be logged in.

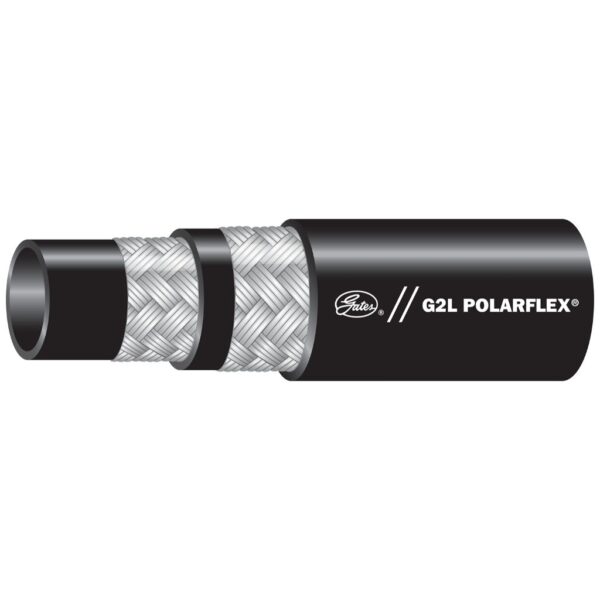

G2L PolarFlex® is recommended for extremely low temperature high-pressure hydraulic oil line applications and is compatible with biodegradable hydraulic fluids like polyolester, polyglycols and vegetable oils as well as petroleum-based fluids.
Options
Description
- Recommended For: Low-temperature high-pressure hydraulic oil lines.
- For use with Field Attachable Type T Couplings [G28 Series], GlobalSpiral™ Couplings [G20 Series], GlobalSpiral Plus Couplings [G22 Series] and MegaCrimp™ Couplings [G25 Series].
- Tested to industry-standard 600,000 impulse cycles.
- Unique low temperature tube for extended service life at extremely low temperatures.
- Meets Flame Resistance Acceptance Designation MSHA 2G.
Additional information
| Weight | 80.4 lbs |
|---|---|
| Dimensions | 40 × 40 × 7 in |
| Automative Part Number | 85707 |
| Product Number | 46574102 |
| Hose Pressure | Variable Pressure-High |
| Tube Material | Nitrile – Type C |
| Tube Characteristics | Hyd Fluids, Phosphate Esters, Water Glycol |
| Reinforcement | 2-braid, wire |
| Cover Type | Standard |
| Cover Material | Chloroprene – Type A |
| Cover Color | Black |
| Tube Color | Black |
| Min Temp © | -57 |
| Max Temp © | 100 |
| Min Temp (F) | -70 |
| Max Temp (F) | 212 |
| Dash Size | 20 |
| Hose ID (in) | 1.25 |
| Hose ID (mm) | 31.8 |
| Hose OD (in) | 1.84 |
| Hose OD (mm) | 46.7 |
| Length (ft) | 50 |
| Length (m) | 15 |
| Dynamic WP (psi) | 1825 |
| Dynamic WP (bar) | 125.8 |
| Min. Burst Pressure (psi) | 7300 |
| Min. Burst Pressure (bar) | 503.3 |
| Min. Bend Radius (in) | 16.5 |
| Min. Bend Radius (mm) | 419.1 |
| Coupling Recommendation 1 | MegaCrimp® Couplings [G25 Series] |
| Coupling Recommendation 2 | GlobalSpiral™ Couplings [G20 Series] |
| Coupling Recommendation 3 | Field Attachable Type T Couplings [G28 Series] |
| ISO Spec 1 | 1436 2SN R2 |
| EN Spec 1 | 853 2SN |
| SAE Spec 1 | 100R2 |
| Military | Mil-DTL-13531 Type II Class B |
| Meets MSHA 2G | YES |
| GC Base Product | Global G2L PolarFlex® Hose – SAE 100R2 Type S |
