3LOLB XREEL
Product Code: 3lolb-xreel
You must be logged in.
Recommended for petroleum–based hydraulic oils, water, glycol anti–freeze solutions, engine lubricating oils and air; Lock–On hose and couplings are NOT recommended for pressure surge applications or critical applications, such as permanent piping in residential or commercial buildings. Do not use for gasoline or diesel fuels, unless approved by Gates H/C Product Application.
Options
3lola-xreel
3lolb-xreel
3lolc-xreel
3lolg-xreel
3lolr-xreel
3loly-xreel
4lola-x50ft
4lola-xreel
4lolb-x25ft
4lolb-xreel
4lolc-xreel
4lolg-x25ft
4lolg-xreel
4lolr-x25ft
4lolr-xreel
4loly-xreel
5lola-x25ft
5lola-x50ft
5lola-xreel
6lola-x50ft
6lola-xreel
6lolb-x25ft
6lolb-xreel
6lolc-xreel
6lolg-x25ft
6lolg-xreel
6lolr-x25ft
6lolr-xreel
6loly-xreel
8lola-x50ft
8lola-xreel
8lolb-x25ft
8lolb-xreel
8lolc-xreel
8lolg-x25ft
8lolg-xreel
8lolr-x25ft
8lolr-xreel
8loly-xreel
10lola-x50ft
10lola-xreel
10lolb-x25ft
10lolb-xreel
10lolc-xreel
10lolg-xreel
10lolr-xreel
10loly-xreel
12lola-x50ft
12lola-xreel
12lolb-x25ft
12lolb-xreel
12lolc-xreel
12lolg-x25ft
12lolg-xreel
12lolr-x25ft
12lolr-xreel
12loly-xreel
Description
- Recommended For: Petroleum-based hydraulic oils, water, glycol anti-freeze solutions, engine lubricating oils, and air. Lock-On hose and couplings are NOT recommended for pressure surge applications or critical applications, such as permanent piping in residential or commercial buildings. Do not use for gasoline or diesel fuels, unless approved by Gates H/C Product Application.
- For use with Field Attachable LOC Couplings [G36 Series], GLX™ Couplings [G44 Series] and G37 single bead and G38 barbed fttings with clamp.

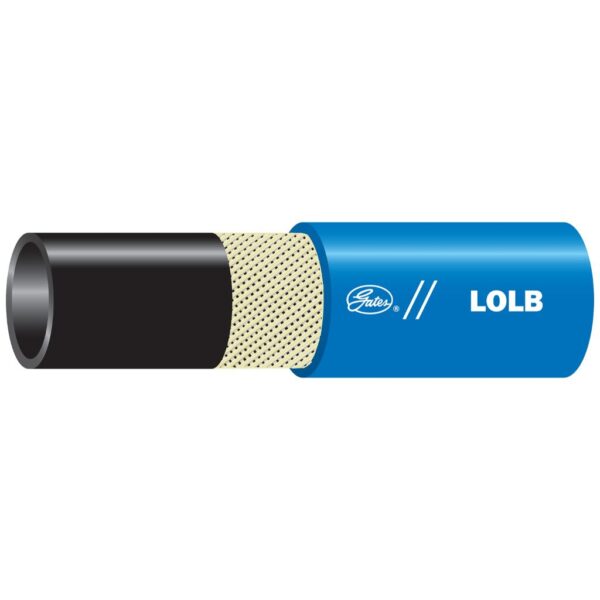

- Available in 6 colors for easy color coding; black Polychloroprene (LOLA), blue (LOLB), green (LOLG), red (LOLR), yellow (LOLY) and gray (LOLC).
- Black cover only meets Flame Resistance Acceptance Designation MSHA 2G.
- Packaged in UPS shippable reels.
Additional information
| Weight | 21 lbs |
|---|---|
| Dimensions | 14 × 14 × 17.25 in |
| Automative Part Number | 70651 |
| Product Number | 32842510 |
| Hose Pressure | Constant Pressure-Low |
| Tube Material | Nitrile – Type C |
| Tube Characteristics | Heat, Oil Resistant |
| Reinforcement | 1-braid, textile |
| Cover Type | Standard |
| Cover Material | Modified Nitrile – Type C2 |
| Cover Color | Blue |
| Tube Color | Black |
| Min Temp © | -40 |
| Max Temp © | 121 |
| Min Temp (F) | -40 |
| Max Temp (F) | 250 |
| Dash Size | 3 |
| Hose ID (in) | 0.1875 |
| Hose ID (mm) | 4.8 |
| Hose OD (in) | 0.41 |
| Hose OD (mm) | 10.4 |
| Length (ft) | 300 |
| Length (m) | 91 |
| Dynamic WP (psi) | 300 |
| Dynamic WP (bar) | 20.7 |
| Min. Burst Pressure (psi) | 1200 |
| Min. Burst Pressure (bar) | 82.7 |
| Min. Bend Radius (in) | 3 |
| Min. Bend Radius (mm) | 76.2 |
| Vacuum (in Hg) | 28 |
| Vacuum (mm Hg) | 711 |
| Coupling Recommendation 1 | Special Order Only |
| Temp Note 1 | Air to +160°F |
| GC Base Product | LOL Lock-On Hose |
