8IA3K XBALE
Product Code: 8ia3k-xbale
You must be logged in.

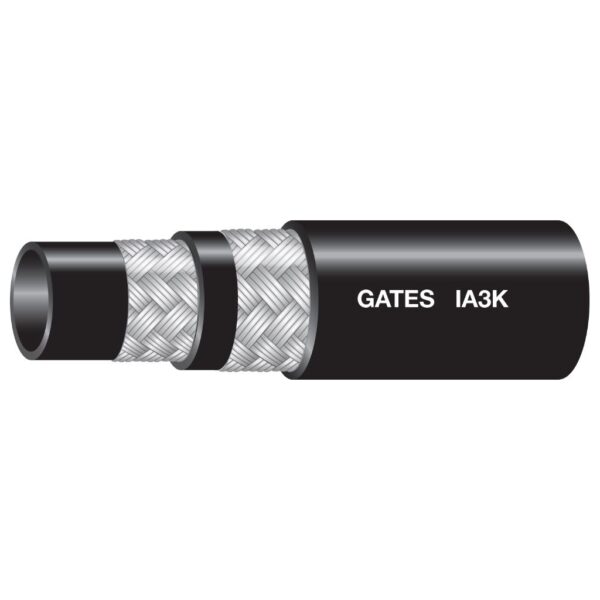

Gates PRO™ Series IA3K, 3000 psi constant-pressure hydraulic hoses deliver performance and reliability. Engineered for less demanding hydraulics applications, our line of professional-grade hoses are designed to balance product performance and investment for everyday uses. All sizes deliver consistent performance to SAE and ISO industry specifications.
Options
Description
- Recommended For: Medium-pressure hydraulics with low flexure/non-severe applications requiring the SAE 100R17 or ISO 18752 Class 210 Grade A specification for dimensions and performance.
- Qualified with Gates PRO™ Series and MegaCrimp™ Couplings.
- Ideal for non-severe, medium-pressure hydraulic applications with low flexure requirements.
- Meets SAE 100R17 and ISO 18752 Grade A.
- Constant 3,000 psi working pressure across all sizes to simplify system design.
- Manufactured to Gates high-quality professional standards.
- Meets MSHA Flame Resistance.
Additional information
| Weight | 784 lbs |
|---|---|
| Dimensions | 30 × 30 × 44 in |
| Product Number | 46574643 |
| Hose Pressure | Constant Pressure-High |
| Tube Material | Nitrile |
| Tube Characteristics | Hyd Fluids, Phosphate Esters, Water Glycol |
| Reinforcement | 1-braid, wire |
| Cover Type | Standard |
| Cover Material | Modified SBR |
| Cover Color | Black |
| Tube Color | Black |
| Min Temp © | -40 |
| Max Temp © | 100 |
| Min Temp (F) | -40 |
| Max Temp (F) | 212 |
| Dash Size | 8 |
| Hose ID (in) | 0.5 |
| Hose ID (mm) | 12.7 |
| Hose OD (in) | 0.76 |
| Hose OD (mm) | 19.3 |
| Length (ft) | 2800 |
| Length (m) | 854 |
| Dynamic WP (psi) | 3000 |
| Dynamic WP (bar) | 206.85 |
| Min. Burst Pressure (psi) | 12000 |
| Min. Burst Pressure (bar) | 827.4 |
| Min. Bend Radius (in) | 3.5 |
| Min. Bend Radius (mm) | 88.9 |
| Coupling Recommendation 1 | Pro Series Couplings |
| ISO Spec 1 | 18752 Class 210 Grade A |
| SAE Spec 1 | 100R17 |
| Meets MSHA 2G | YES |
| GC Base Product | IA3K – Wire Braid Hose – SAE 100R17 |
