        Product Code: 12rla-30r2-x25ft
        You must be logged in.

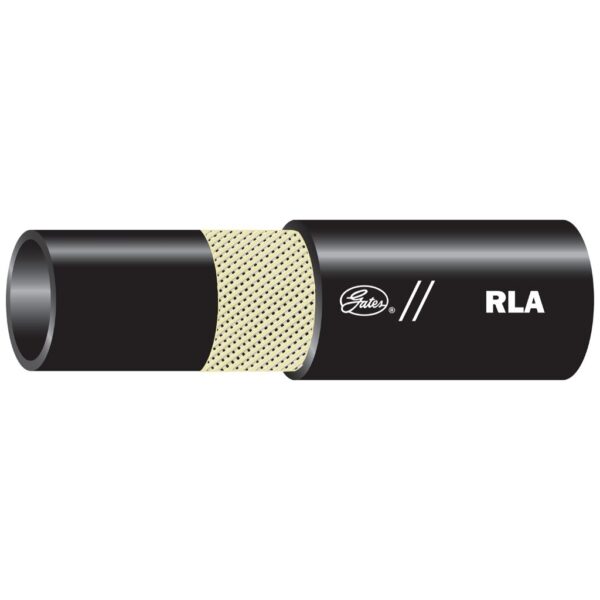

        RLA hose is recommended for low-pressure hydraulic oil return, general purpose water, glycol antifreeze solutions, diesel fuel, gasoline or air.

        Description

        • Recommended For: Low-pressure hydraulic oil return, general purpose water, glycol antifreeze solutions, diesel fuel, gasoline or air.
        • For use with MegaCrimp™ Couplings [G25 Series] and Power Crimp™ Couplings (-3 only), GLP Couplings [G42 Series] (RLA -4 through -12 only), and GLX™ Couplings [G44 Series] (-12 and -16 only).
        • Meets SAE 30R2 Type 1 requirements (except wall thickness for RLA) including B20 (up to 20%) biodiesel for constant contact up to +125°F (51°C). Also meets SAE 30R2 Type 2 performance requirements.
        • Meets Flame Resistance Acceptance Designation MSHA 2G.

        Additional information

        Weight 8.1 lbs
        Dimensions 15.375 × 3.875 × 15.375 in
        Automative Part Number

        85946

        Product Number

        32844088

        Hose Pressure

        Variable Pressure-Low

        Tube Material

        Nitrile – Type C

        Tube Characteristics

        Oil Resistant

        Reinforcement

        1-braid, textile

        Cover Type

        Standard

        Cover Material

        Modified Nitrile – Type C2

        Cover Color

        Black

        Tube Color

        Black

        Min Temp ©

        -40

        Max Temp ©

        100

        Min Temp (F)

        -40

        Max Temp (F)

        212

        Dash Size

        12

        Hose ID (in)

        0.75

        Hose ID (mm)

        19.1

        Hose OD (in)

        1.09

        Hose OD (mm)

        27.7

        Length (ft)

        25

        Length (m)

        8

        Dynamic WP (psi)

        200

        Dynamic WP (bar)

        13.8

        Min. Burst Pressure (psi)

        800

        Min. Burst Pressure (bar)

        55.2

        Min. Bend Radius (in)

        6

        Min. Bend Radius (mm)

        152.4

        Vacuum (in Hg)

        10

        Vacuum (mm Hg)

        254

        Coupling Recommendation 1

        GLX® Couplings [G44 Series]

        Coupling Recommendation 2

        MegaCrimp® Couplings [G25 Series]

        SAE Spec 1

        30R2 Type 1

        SAE Spec 2

        30R2 Type 2

        Meets MSHA 2G

        YES

        Temp Note 1

        Air to +160°F

        GC Base Product

        RLA 1-Fiber Braid Return Line and Low Pressure Hose
