20C5E XCTN
Product Code: 20c5e-xctn
You must be logged in.

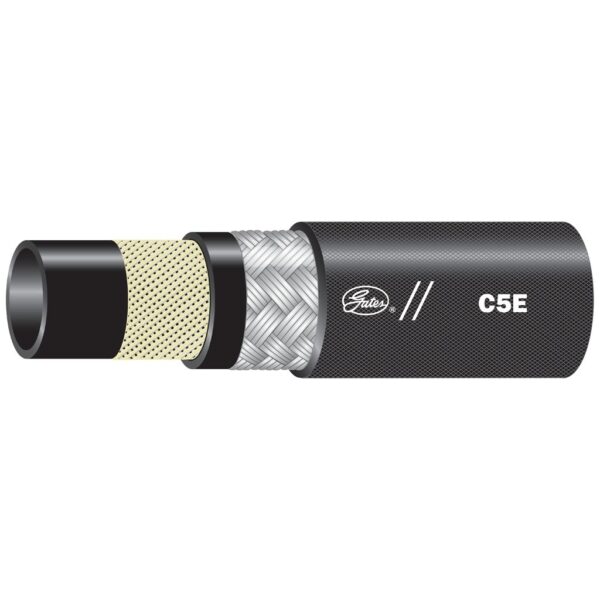

C5E High-Temp Flexline™ hose is recommended for air brake hose, power steering (CAUTION: Intended for heavy–duty commercial vehicle use only), engine and transmission coolant lines and hot (+300°F) lube oil lines. Not recommended for gasoline or diesel fuel.
Options
Description
- Recommended For: Air brake hose, power steering (CAUTION: Intended for heavy-duty commercial vehicle use only), engine and transmission coolant lines, and hot (+300F) lube oil lines. Not recommended for gasoline or diesel fuel.
- For use with C5E Field Attachable Couplings [G35 Series].
- Meets DOT FMVSS 106 Type A1, SAE J1405 and SAE J1402 Type A1 (-4 to -12).
Additional information
| Weight | 52 lbs |
|---|---|
| Dimensions | 28.5 × 28.5 × 7.5 in |
| Automative Part Number | 70197 |
| Product Number | 36580207 |
| Hose Pressure | Variable Pressure-Medium |
| Tube Material | Nitrile – Type C |
| Tube Characteristics | Heat, Oil Resistant |
| Reinforcement | 2-braid, texile, wire |
| Cover Type | Standard |
| Cover Material | Textile Braid Impregnated w/ Synthetic Rubber |
| Cover Color | Black |
| Tube Color | Black |
| Min Temp © | -40 |
| Max Temp © | 149 |
| Min Temp (F) | -40 |
| Max Temp (F) | 300 |
| Dash Size | 20 |
| Hose ID (in) | 1.125 |
| Hose ID (mm) | 28.6 |
| Hose OD (in) | 1.49 |
| Hose OD (mm) | 37.8 |
| Length (ft) | 100 |
| Length (m) | 30 |
| Dynamic WP (psi) | 300 |
| Dynamic WP (bar) | 20.7 |
| Min. Burst Pressure (psi) | 1200 |
| Min. Burst Pressure (bar) | 82.7 |
| Min. Bend Radius (in) | 4.5 |
| Min. Bend Radius (mm) | 114.3 |
| Coupling Recommendation 1 | C5E Field Attachable Couplings [G35 Series] |
| DOT | DOT FMVSS 106 Type A1 |
| Temp Note 1 | Air to +250°F Max |
| GC Base Product | C5E High-Temp Flexline® Hose |
