        Product Code: 24g2h-x25ft
        You must be logged in.

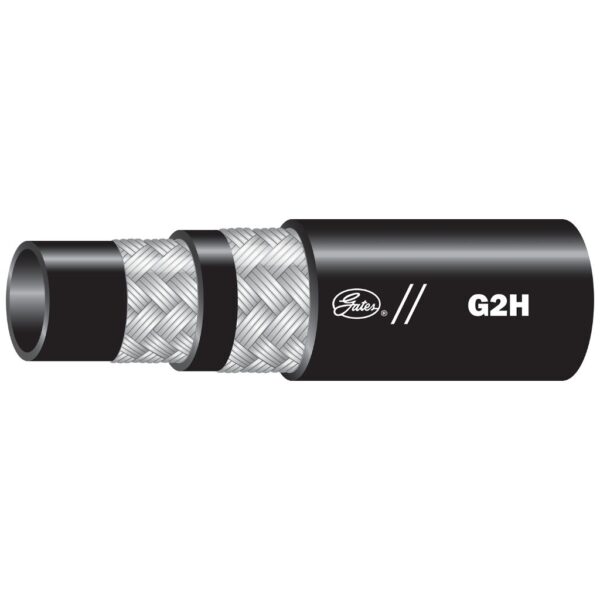

        G2H hose is recommended for high-temperature, high-pressure hydraulic oil line applications.

        Description

        • Recommended For: High-temperature high-pressure hydraulic oil lines.
        • For use with Field Attachable Type T Couplings [G28 Series], GlobalSpiral™ Couplings [-20 G20 Series], GlobalSpiral Plus Couplings [G22 Series], MegaCrimp™ Couplings [G25 Series] and Stainless Steel Braid Couplings [G17 Series].
        • Tested to industry-standard 600,000 impulse cycles.
        • MegaTuff™ hose lasts up to 300 times longer than standard hose during hose-to-hose and hose-to-metal abrasion tests per ISO 6945 and offers superior ozone and weathering resistance.
        • Meets Flame Resistance Acceptance Designation MSHA 2G.

        Additional information

        Weight 45 lbs
        Dimensions 28.875 × 28.875 × 5.125 in
        Automative Part Number

        85427

        Product Number

        46574331

        Hose Pressure

        Variable Pressure-High

        Tube Material

        Nitrile – Type C

        Tube Characteristics

        Hyd Fluids, Phosphate Esters, Water Glycol

        Reinforcement

        2-braid, wire

        Cover Type

        Standard

        Cover Material

        CSM – Type M

        Cover Color

        Black

        Tube Color

        Black

        Min Temp ©

        -40

        Max Temp ©

        135

        Min Temp (F)

        -40

        Max Temp (F)

        275

        Dash Size

        24

        Hose ID (in)

        1.5

        Hose ID (mm)

        38.1

        Hose OD (in)

        2.11

        Hose OD (mm)

        53.6

        Length (ft)

        25

        Length (m)

        8

        Dynamic WP (psi)

        1300

        Dynamic WP (bar)

        89.6

        Min. Burst Pressure (psi)

        5200

        Min. Burst Pressure (bar)

        358.5

        Min. Bend Radius (in)

        20

        Min. Bend Radius (mm)

        508

        Coupling Recommendation 1

        GlobalSpiral™ Plus Couplings [G22 Series]

        Coupling Recommendation 2

        Stainless Steel Braid Couplings [G17 Series]

        Coupling Recommendation 3

        Field Attachable Type T Couplings [G28 Series]

        ISO Spec 1

        1436 2SN R2

        EN Spec 1

        853 2SN

        SAE Spec 1

        100R2

        Meets MSHA 2G

        YES

        GC Base Product

        Global G2H High-Temp 2-Wire Braid Hose – Type AT
