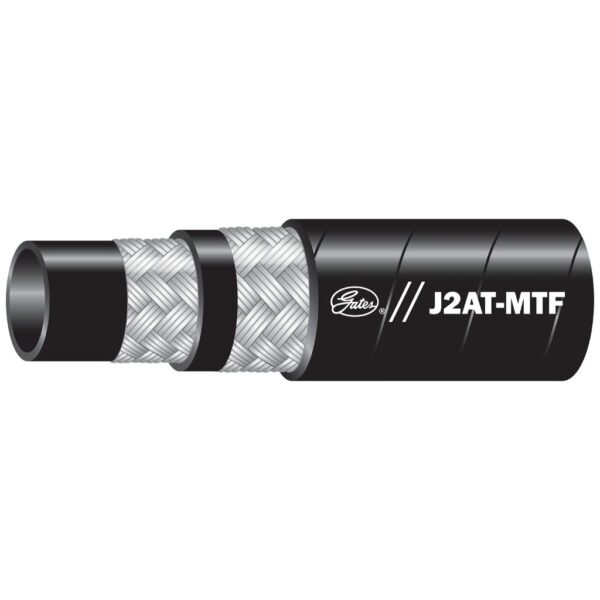

4J2AT-MTF XREEL
Product Code: 4j2at-mtf-xreel
J2AT-MTF hose is recommended for ultra-high abrasion hydraulic jack applications. Meets Material Handling Institute specification IJ 100 for hydraulic hose and assemblies used with jacking systems. Up to 10,000 psi static pressure only.
Options
Description
- MegaTuff™ hose lasts up to 300 times longer than standard hose during hose-to-hose and hose-to-metal abrasion tests per ISO 6945.
- Coupling Recommendations: MegaCrimp™ [G25 Series] 4G-4MP, 4G-4MPLN, 4G-6MP, 4G-6MPLN, 6G-6MP, 6G-6MPLN, 6G-4MP and 6G-4MPLN Male Pipe and Male Pipe Long Nose couplings
- Temperature Range: -40°F to +120°F (-40°C to +49°C)
- Meets Flame Resistance Acceptance Designation MSHA 2G
Additional information
| Weight | 94.5 lbs |
|---|---|
| Dimensions | 14 × 14 × 17.25 in |
| Automative Part Number | 70469 |
| Product Number | 46571188 |
| Hose Pressure | Constant Pressure-Very High |
| Tube Material | Nitrile – Type C |
| Tube Characteristics | Oil Resistant |
| Reinforcement | 2-braid, wire |
| Cover Type | MegaTuff |
| Cover Material | Synthetic Rubber |
| Cover Color | Black |
| Tube Color | Black |
| Min Temp © | -40 |
| Max Temp © | 49 |
| Min Temp (F) | -40 |
| Max Temp (F) | 120 |
| Dash Size | 4 |
| Hose ID (in) | 0.25 |
| Hose ID (mm) | 6.4 |
| Hose OD (in) | 0.59 |
| Hose OD (mm) | 15 |
| Length (ft) | 350 |
| Length (m) | 107 |
| Dynamic WP (psi) | 10000 |
| Dynamic WP (bar) | 689.5 |
| Min. Burst Pressure (psi) | 20000 |
| Min. Burst Pressure (bar) | 1379 |
| Min. Bend Radius (in) | 2 |
| Min. Bend Radius (mm) | 50.8 |
| Coupling Recommendation 1 | MegaCrimp® Male Pipe Long Nose |
| Other Spec | Material Handling Institute IJ100, hose/assemblies |
| Meets MSHA 2G | YES |
| GC Base Product | J2AT 2-Wire Braid Jack Hose – MegaTuff® Cover – 10,000 Static Pressure Only |
