4TH18 XCTN
Product Code: 4th18-xctn
You must be logged in.

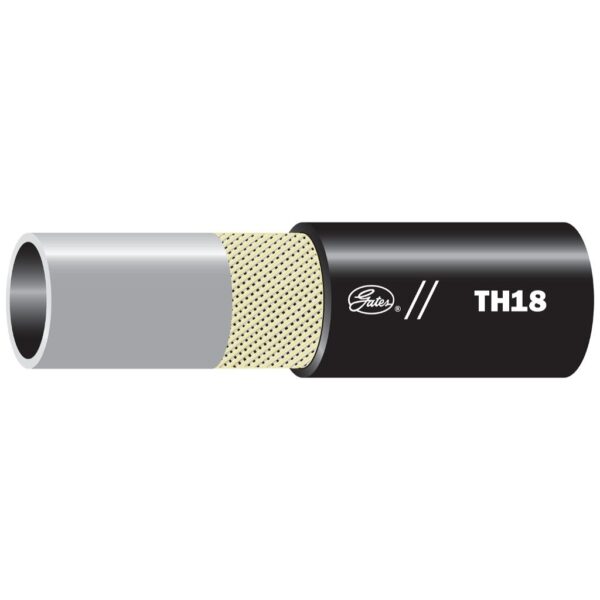

TH18 hose is suitable for petroleum or synthetic-based hydraulic fluids in hydraulic systems. This hose is ideal for industrial and agricultural applications exposed to low temperatures or cyclic and quick temperature changes. Remains highly flexible in cold weather conditions and is resistant to hydraulic fluids, high temperatures, aging and weathering.
Description
- Recommended For: TH18 hose meets or exceeds performance requirements of SAE 100R18 with a significantly tighter bend radius. Suitable for petroleum or synthetic-based hydraulic fluids in hydraulic systems. TH18 is ideal for industrial and agricultural applications exposed to low temperatures or cyclic and quick temperature changes. Remains highly flexible in cold weather conditions and is resistant to hydraulic fluids, high temperatures, aging and weathering.
- For use with MegaCrimp™ Couplings [G25 Series].
- Meets or exceeds performance requirements of SAE 100R18 with a signifcantly tighter bend radius.
Additional information
| Weight | 18.75 lbs |
|---|---|
| Dimensions | 28.875 × 28.875 × 5.125 in |
| Automative Part Number | 71001 |
| Product Number | 44670006 |
| Hose Pressure | Constant Pressure-High |
| Tube Material | Polyester Elastomer |
| Reinforcement | 1-braid, synthetic fiber |
| Cover Type | Standard |
| Cover Material | Urethane |
| Cover Characteristic | Perforated |
| Cover Color | Black |
| Tube Color | Black |
| Min Temp © | -55 |
| Max Temp © | 100 |
| Min Temp (F) | -67 |
| Max Temp (F) | 212 |
| Dash Size | 4 |
| Hose ID (in) | 0.25 |
| Hose ID (mm) | 6.4 |
| Hose OD (in) | 0.48 |
| Hose OD (mm) | 12.2 |
| Length (ft) | 250 |
| Length (m) | 76 |
| Dynamic WP (psi) | 3000 |
| Dynamic WP (bar) | 206.8 |
| Min. Burst Pressure (psi) | 12000 |
| Min. Burst Pressure (bar) | 827.4 |
| Min. Bend Radius (in) | 1.4 |
| Min. Bend Radius (mm) | 35.6 |
| Coupling Recommendation 1 | MegaCrimp® Couplings [G25 Series] |
| SAE Spec 1 | 100R18 |
| Temp Note 1 | Petroleum, Synthetic Oils |
| Temp Note 2 | Water/Oil, Water-based Fluids to +158°F |
| GC Base Product | TH18 Thermoplastic Constant Pressure Hydraulic Hose – SAE 100R18 |
