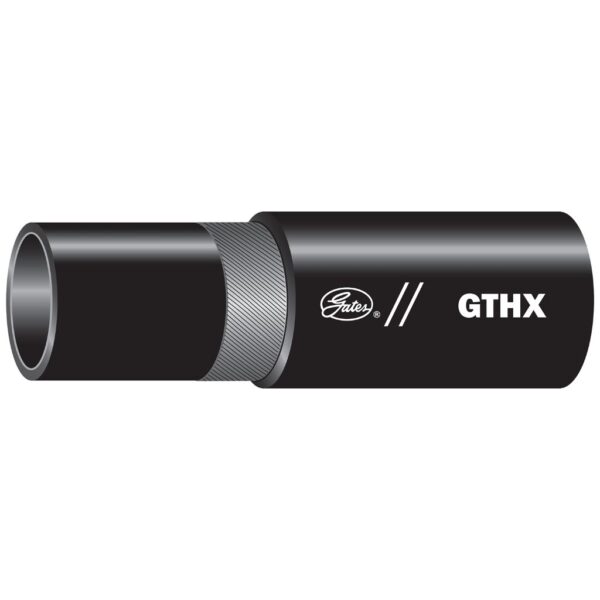

6GTHX X50FT
Product Code: 6gthx-x50ft
You must be logged in.
Recommended for high-temperature, low pressure hydraulic oil lines, heavy-duty transmission oil cooler lines and glycol anti-freeze solutions.
Options
Description
- Recommended For: Hydraulic oil lines, heavy-duty transmission oil cooler lines and glycol anti-freeze solutions.
- For use with MegaCrimp™ Couplings [G25 Series] and Power Crimp™ Couplings.
- Meets or exceeds requirements of SAE 100R6.
Additional information
| Weight | 6 lbs |
|---|---|
| Dimensions | 12.375 × 5.125 × 12.25 in |
| Automative Part Number | 86688 |
| Product Number | 32890005 |
| Hose Pressure | Variable Pressure-Low |
| Tube Material | Nitrile – Type C |
| Tube Characteristics | Hyd Fluids, Phosphate Esters, Water Glycol |
| Reinforcement | 1-spiral, textile |
| Cover Type | Standard |
| Cover Material | Polychloroprene (Neoprene) – Type A |
| Cover Color | Black |
| Tube Color | Black |
| Min Temp © | -40 |
| Max Temp © | 135 |
| Min Temp (F) | -40 |
| Max Temp (F) | 275 |
| Dash Size | 6 |
| Hose ID (in) | 0.375 |
| Hose ID (mm) | 9.5 |
| Hose OD (in) | 0.63 |
| Hose OD (mm) | 16 |
| Length (ft) | 50 |
| Length (m) | 15 |
| Dynamic WP (psi) | 400 |
| Dynamic WP (bar) | 27.6 |
| Min. Burst Pressure (psi) | 1600 |
| Min. Burst Pressure (bar) | 110.3 |
| Min. Bend Radius (in) | 3 |
| Min. Bend Radius (mm) | 76.2 |
| Vacuum (in Hg) | 28 |
| Vacuum (mm Hg) | 711 |
| Coupling Recommendation 1 | MegaCrimp® Couplings [G25 Series] |
| SAE Spec 1 | 100R6 |
| Temp Note 1 | Intermittent to +300°F |
| GC Base Product | GTHX High-Temp Fiber Spiral Hose – SAE 100R6 |
